Hybridtv 2GB 16GB H.265 4K TV Box Android Hybrid TV Box 4K Satellite TV Receiver DVB S2 T2
Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee
1,997
1
- Description
Android Hybrid TV Box Specifications:
| Product Description | ||
| Quad Core HD TV Box support DVB T2 Android base TV system IPTV, VOD, KODI, Youtube, Redtube H.264 1080p Video encoding H.264/H.265 decoding up to 4K×2K@30fps |
||
| Basic parameters | ||
| System | SoC: Allwinner RP-T507A | |
| CPU: ARM Quad Cortex-A7 up to 1.2GHz | ||
| GPU: Mali-400MP2 | ||
| DRAM: DDR3 2GB | ||
| Flash: EMMC 16GB | ||
| OS: Android N | ||
| Network | RJ45 Interface 10M/100M adaptive | |
| Build in Wi-Fi 2.4GHz 802.11 b/g/n(2.4GHz, 5GHz, BT Optional ) | ||
| Tuner | Tuner+DEMO: M88RS600B | |
| Frequency Range: 950~2150MHZ | ||
| Input Level: -65~-25dBm | ||
| Input impedance: 75Ω | ||

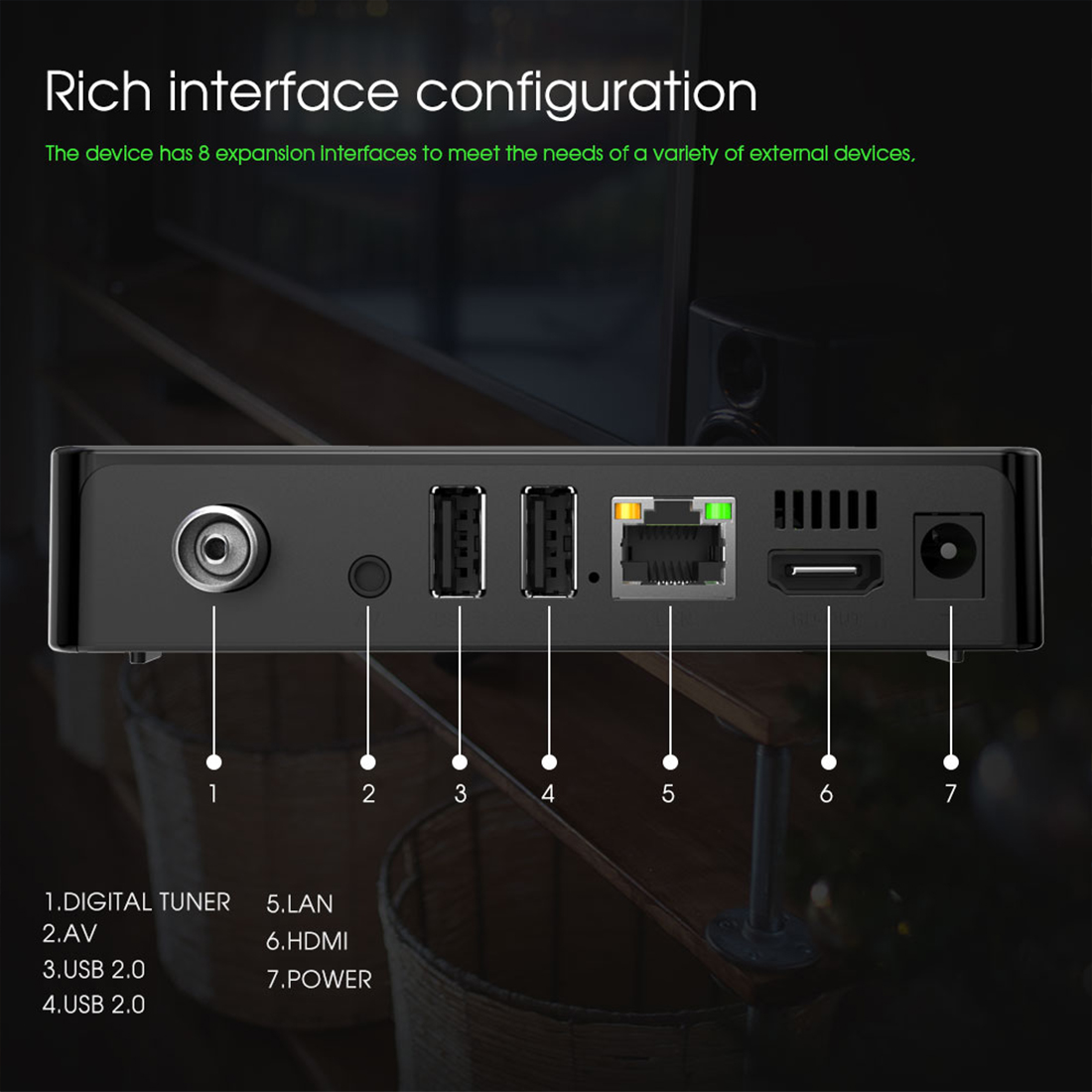

| I/O | ||
| RF | RF IN | |
| Video Output | HDMI, AV | |
| Network | RJ45, Buildin Wi-Fi antenna | |
| Peripheral Interface | USB2.0 x2 | |
| Power Interface | DC 12V | |
| Other Interface | Front panel: IR receiver, LED indicator | |
| Media | ||
| Video | Decoder: H.265 decoding up to 4K×2K@30fps H.264 HP@L5.1 up to 4K×2K@30fps SVC, MVC, VC-1/WMV, AVS, WebM, RMVB, MPEG1/2/4, MJPEG, H.263, DivX 3/4/5, Xvid, Real Video, VP6/8 |
|
| Format: MKV, TS, M2TS, MOV, MP4, RM, RMVB, AVI, MPG, MPEG, DAT, VOB, FLV etc. |
||
| Audio | Decoder: MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio(AC-3 Optional ) |
|
| Format: MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc. |
||
| Subtitle Format | SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation | |
| Photo Format | HD JPEG/BMP/GIF/PNG/TIFF | |
| Features | ||
| Digital TV | Fully compliant with HD DVB-S2/DVB-S, 7 days EPG, USB PVR, Timeshift, Program playback, Timing playing | |
| CAS | Conax CA (Optional), Patch, BISS, CCCAM, NEWCAM, GSCAM, MGCAM | |
| 4K | H.264/H.265 decoding up to 4Kx2K@30fps, Support 4Kx2K max resolution output | |
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming | |
| Multi-screen interactive | Miracast, DLNA and Airplay | |
| System Upgrading | Upgrading via USB disk or internet | |
| Local Media Playback | Video/Audio/Picture | |
| External Storage | USB storage max to 32GB (FAT32/NTFS) | |
| Games | Android 2D/3D games | |
| APP | KODI(XBMC),Facebook, YouTube, Skype, Google play etc. | |
| Other parameters | ||
| Input Voltage | DC IN 12V/1A | |
| Power Consumption | 6W Max | |
| Operation Temperature | 0~40℃, Humidity<95% | |
| Physical characteristics | Size: 139mm*85mm*28mm | |
| Weight: 326g | ||
| Material: plastic | ||
| Proposed Accessory | Remote control and Battery(Optional), User manual(Optional), Power adapter, AV cable(Optional), HDMI cable | |

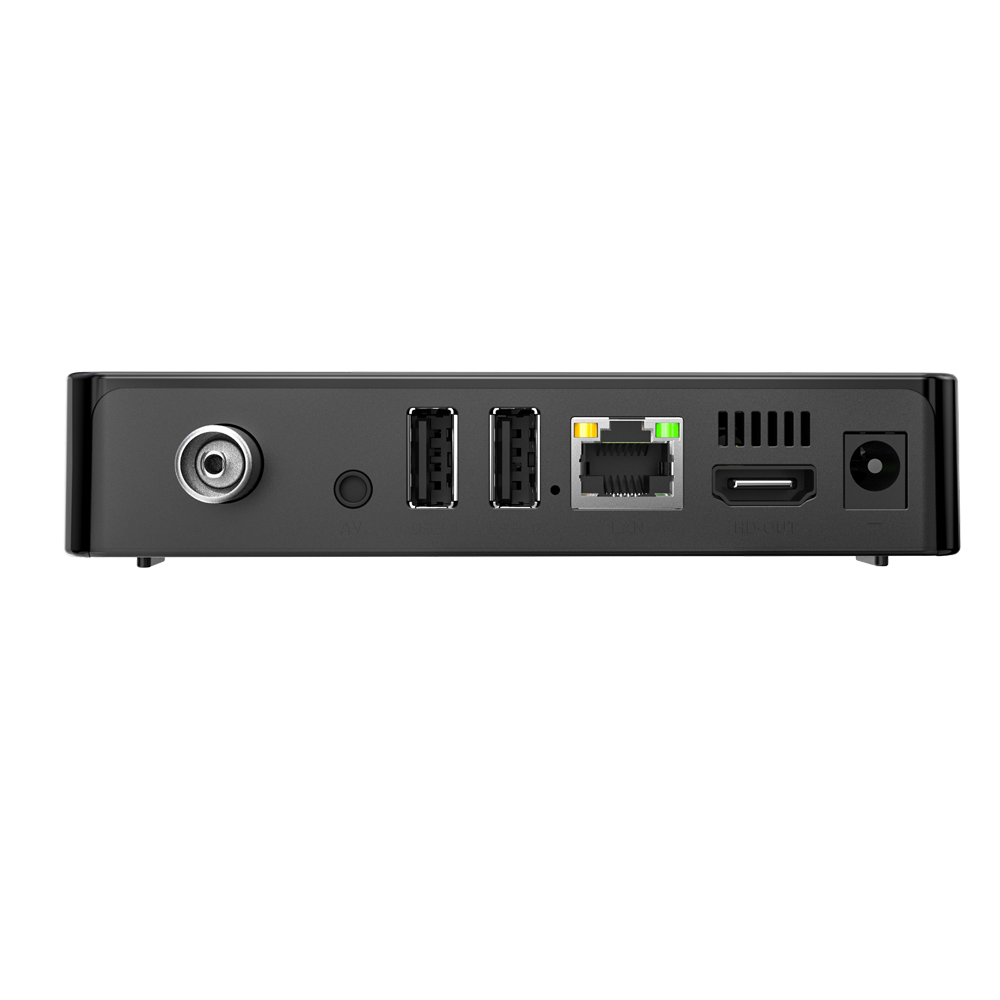

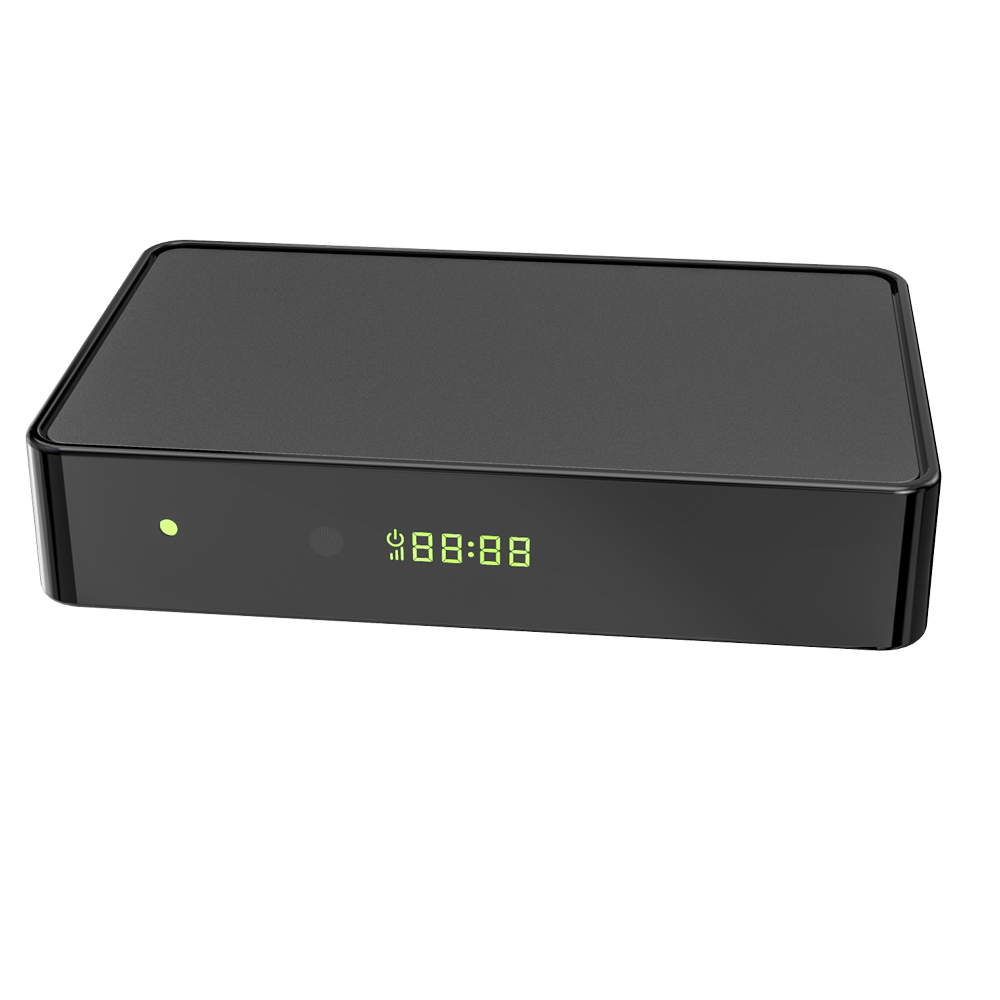

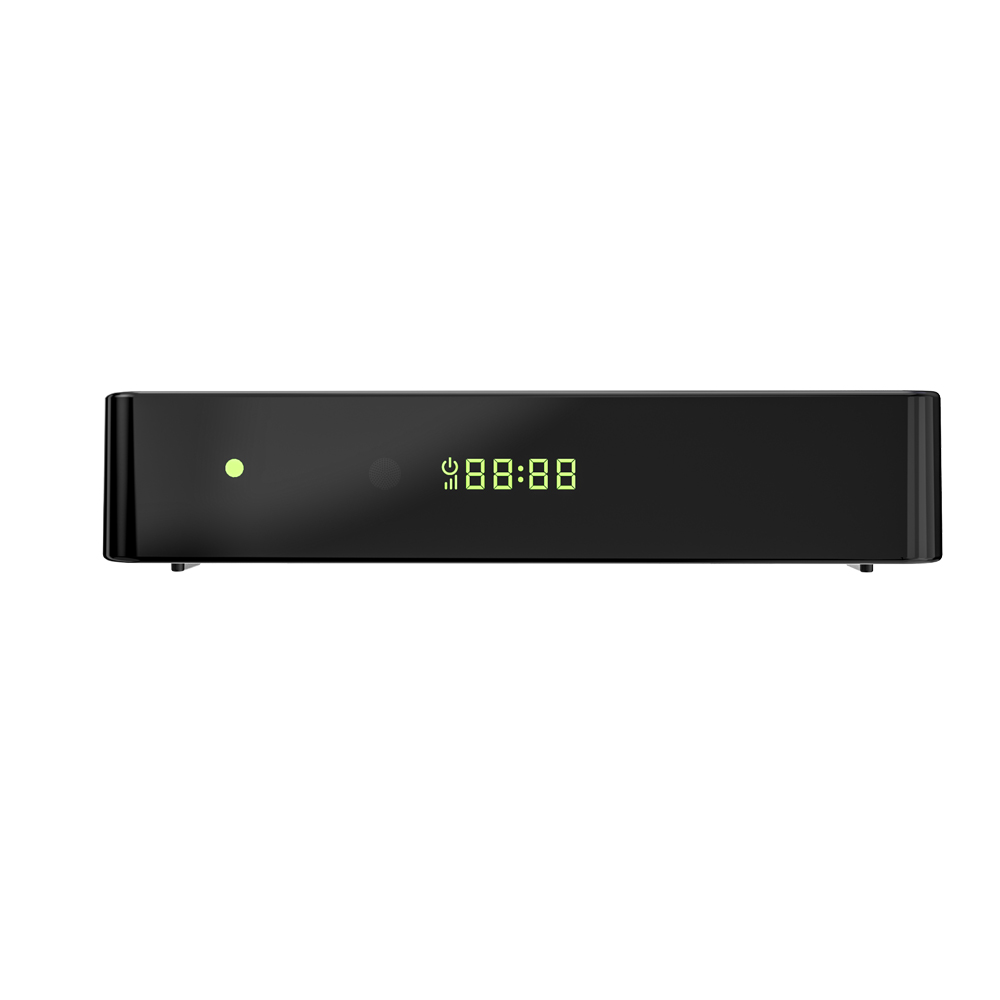

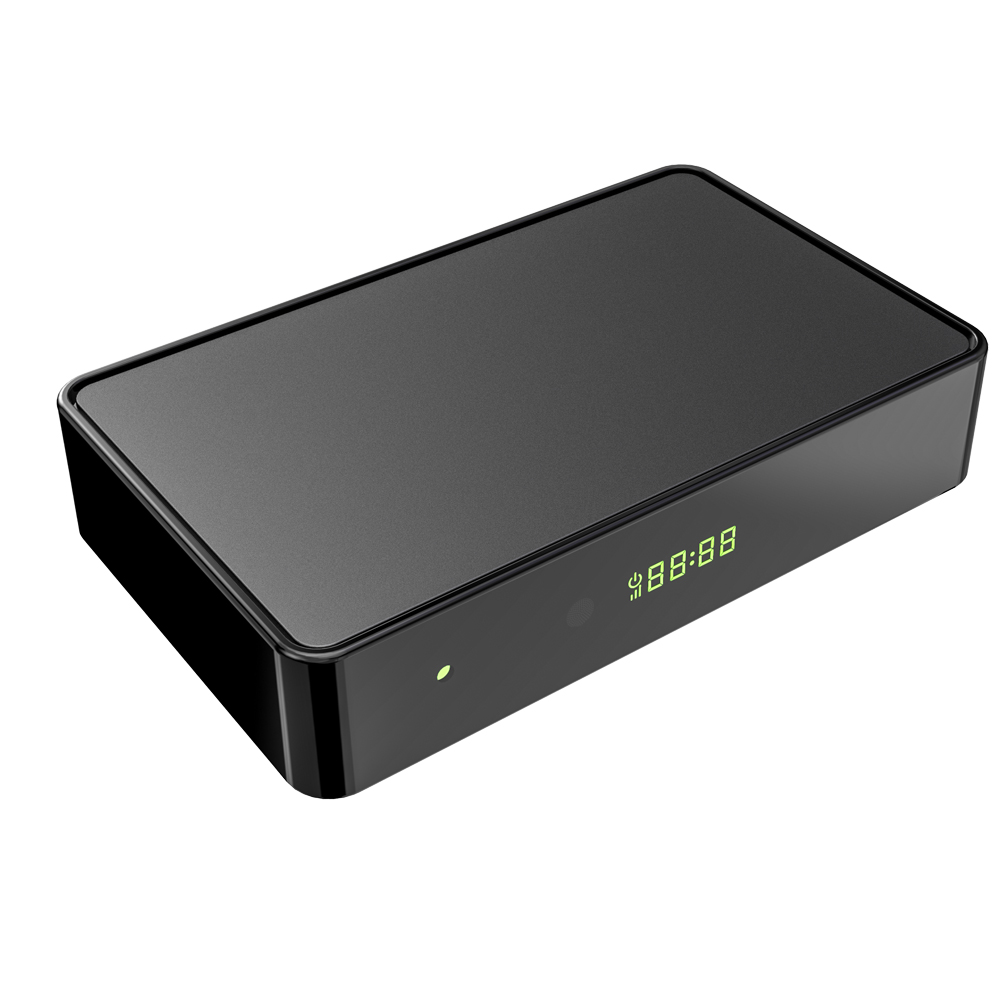

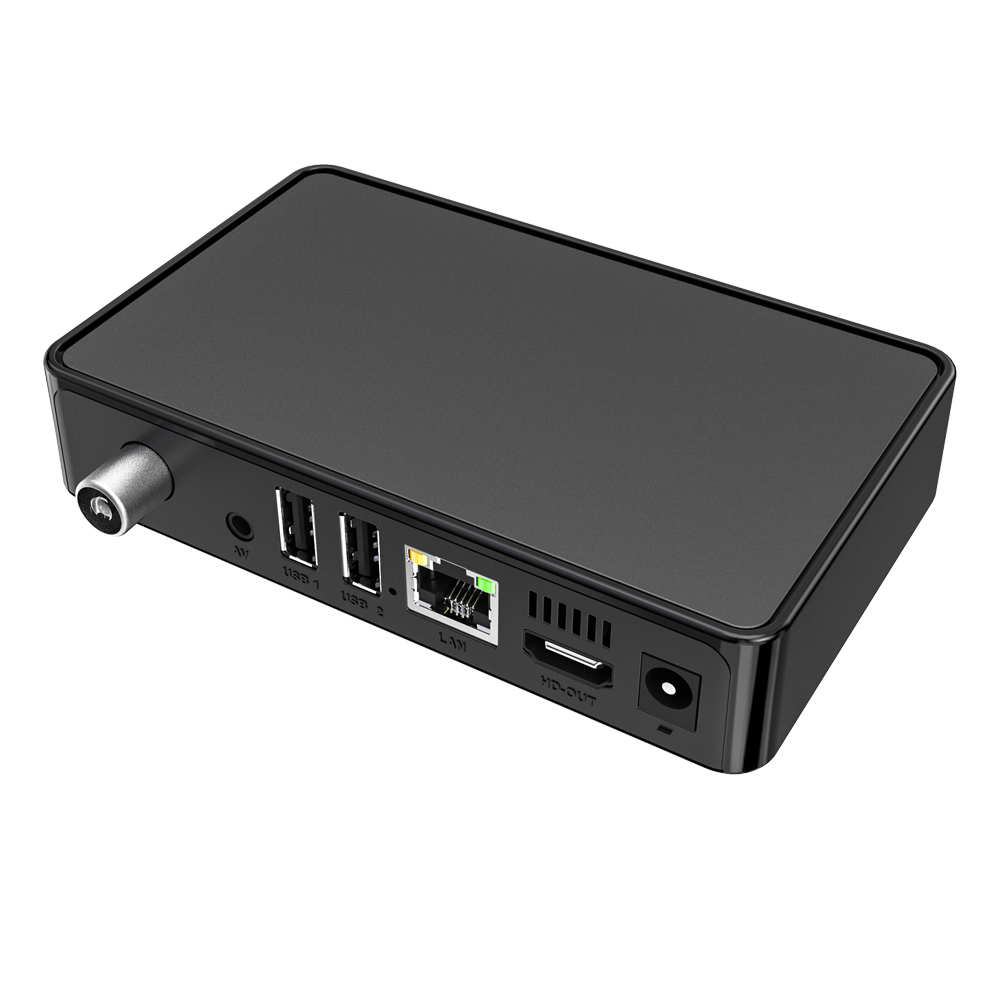

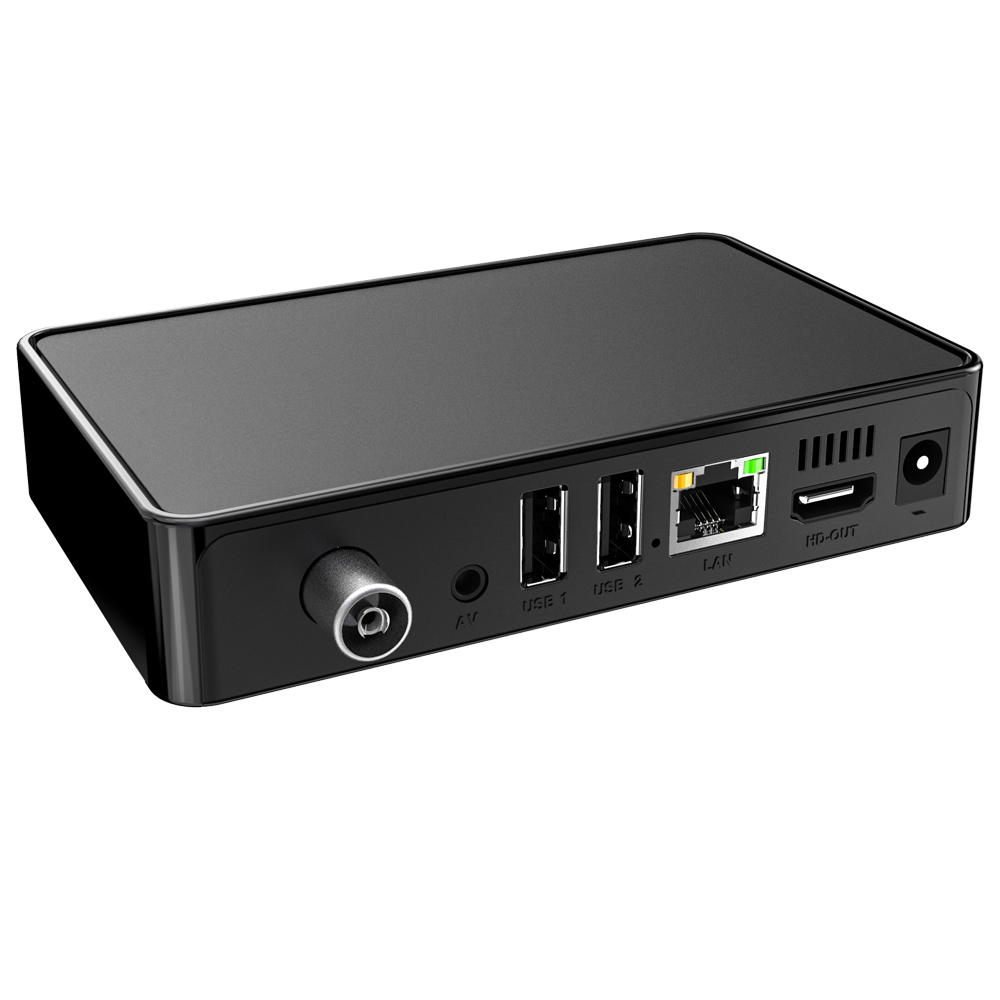

Android Hybrid TV Box Pictures:
