OEM Customize HK1 Rbox X4S Amlogic S905X4 Quad Core 4K Android Tv Box 2GB 16GB Smart TV Box
Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.

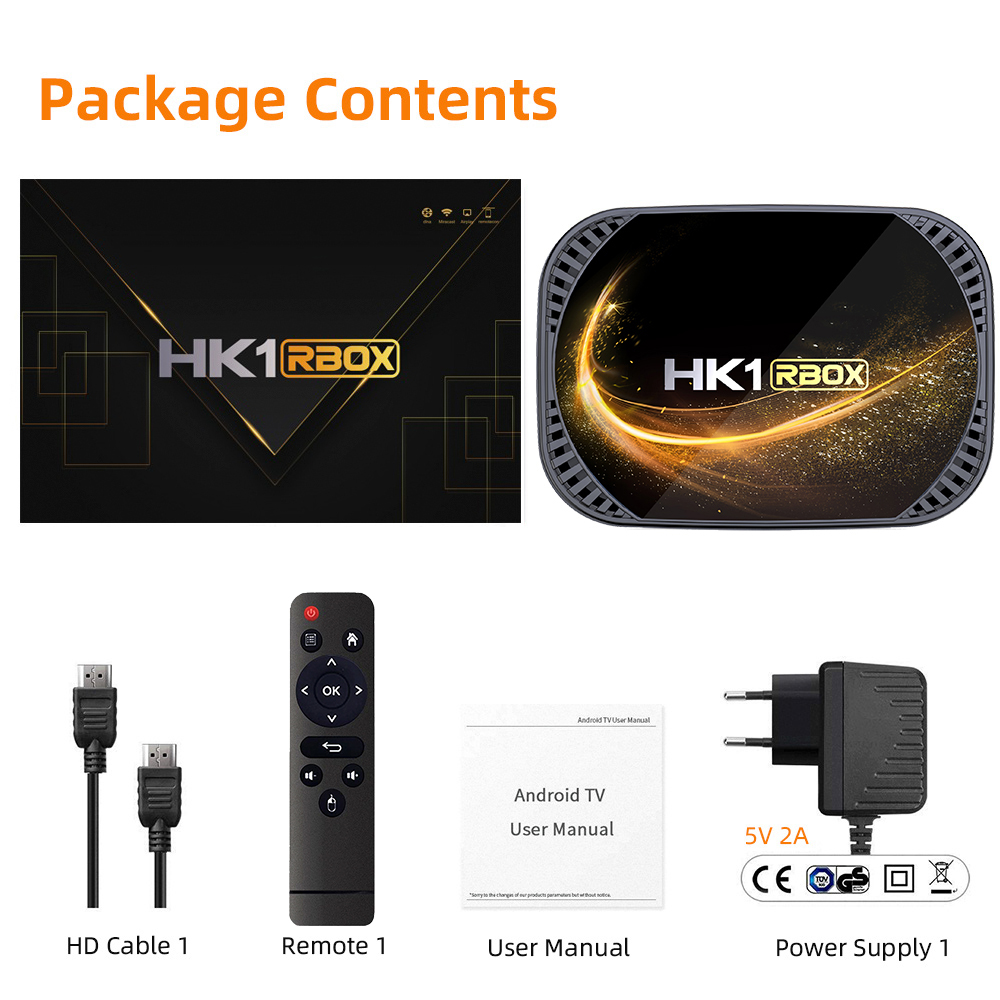

● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee
320
0
- Description
HK1 RBOX X4S TV Box Specifications:
|
Type
|
Android TV Box, Smart STB, Netbox, Streaming Media Box
|
|
CPU
|

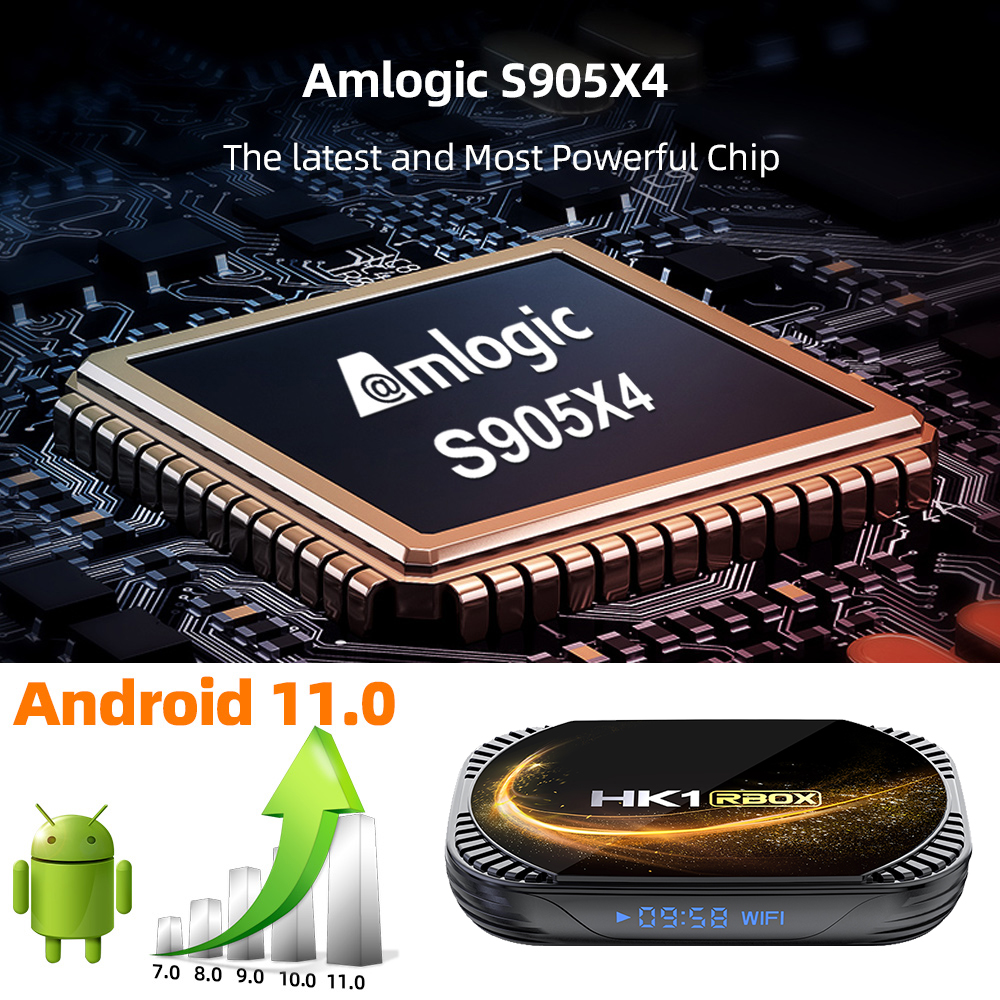

Amlogic S905X4 64-bit quad core ARM A55 CPU
|
|
GPU
|
G31 MP2 GPU processor
|
|
Memory
|
DDR3: 2G/4GB
|
|
Flash
|
eMMC：16G/32GB/64GB/128GB
|
|
WiFi
|
IEEE 802.11 b/g/n ; 2.4G / 5G
|
|
BT
|
BT ; Support Voice Remote
|
|
Moudle
|
Plastic : Black Color
|
|

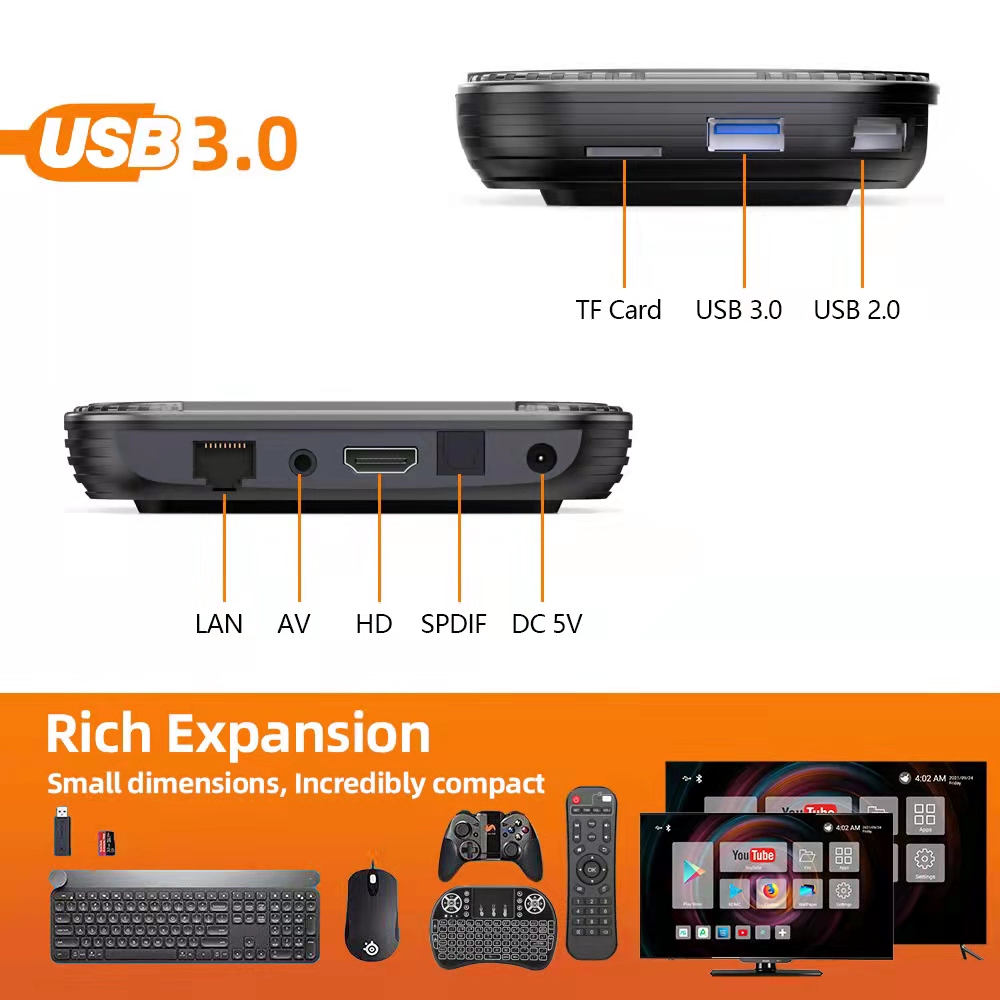

1*HD
|
HD 2.1 ,Support HD CEC, Dynamic HDR and and 8Kx4K@24 max resolution output
|
|
1*AV OUT
|
480i/576i standard definition output
|
|
2*USB
|
1 * USB 3.0 ; 1*USB 2.0
|
|
1*IR Reciver
|
Remote Reciver Connect
|
|
1*RJ45
|
Ethernet Interface;Support 10/100M
|
|
1*TF CARD
|
Support 4GB/8GB/16GB/32GB/64GB
|
|
Power Supply
|
DC 5V/2A
|
|
OS
|
Android 11.0
|
|
Video
|
Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
Support multi-video decoder up to 4x1080P@60fps Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding Video/Picture Decoding/AV1 MP-10@L5.1 4Kx2K@60fps – VP9 Profile-2 up to 8Kx4K@24 fps – H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps – AVS2-P2 Profile up to 8Kx4K@24 fps – H.264 AVC HP@L5.1 up to 4Kx2K@30fps – MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) – WMV/VC-1 SP/MP/AP up to 1080P@60fps – AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps – MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) – MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) – RealVideo 8/9/10 up to 1080P@60fps – Multiple language and multiple format sub-title video support – MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) – Supports JPEG thumbnail, scaling, rotation and transition effects – Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
|
Audio
|
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Low-power VAD Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output 3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs Built-in stereo audio DAC Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM |
|
|
HD JPEG、BMP、GIF、PNG、TIF
|
|
Language
|
English French German Spanish Italian etc multilateral languages
|

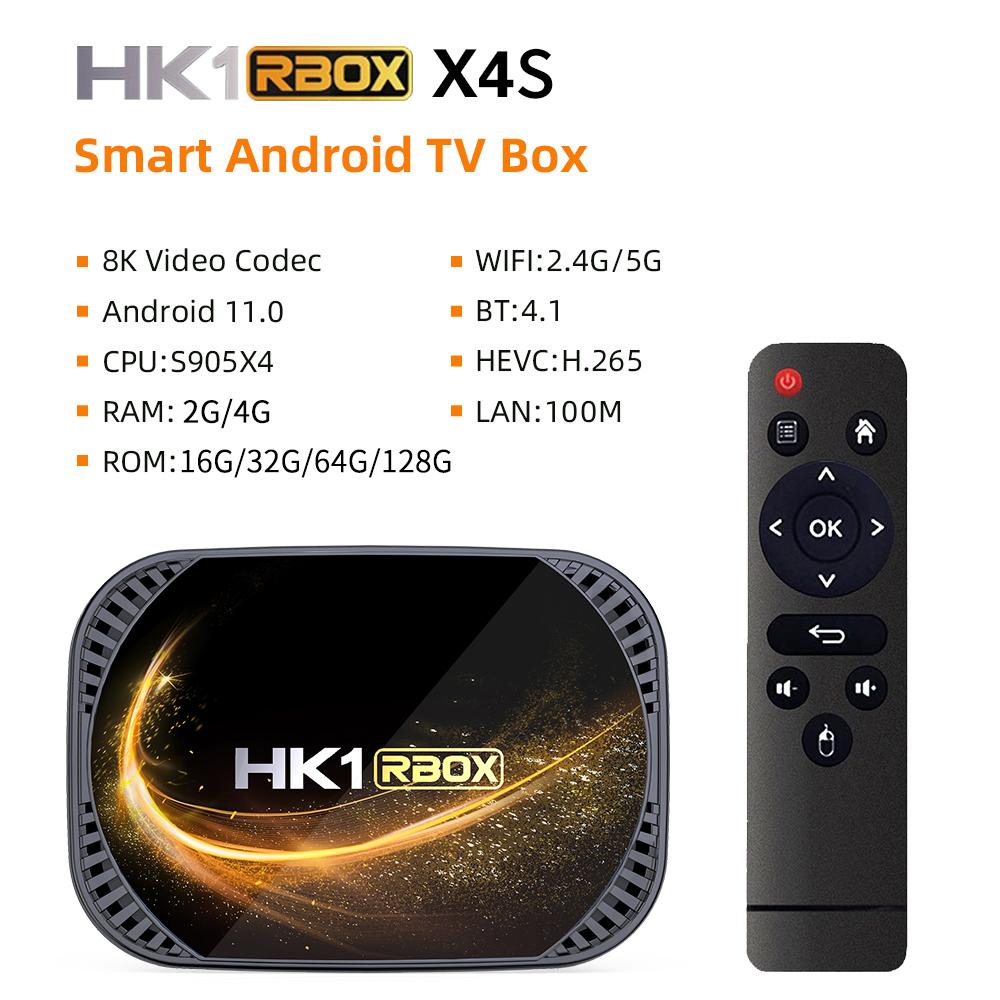

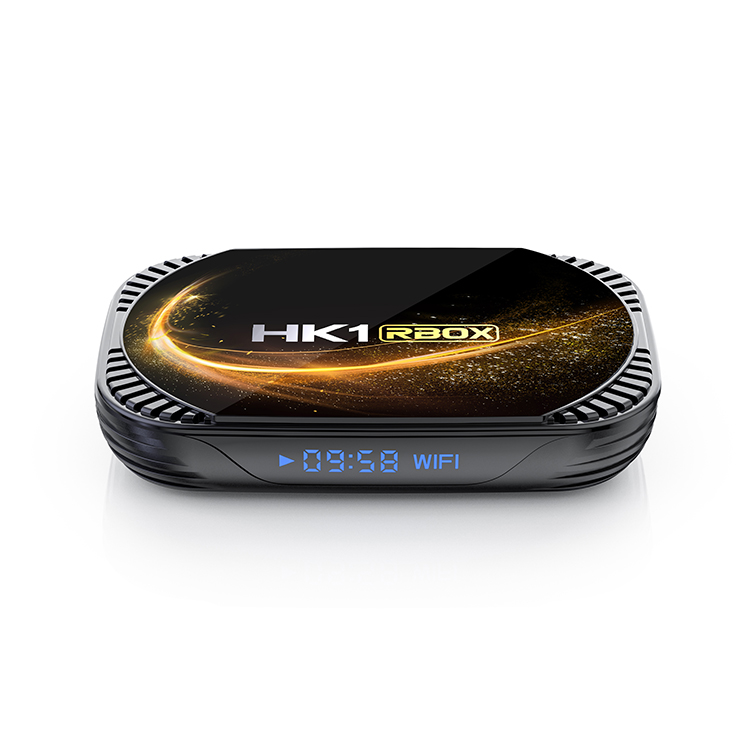

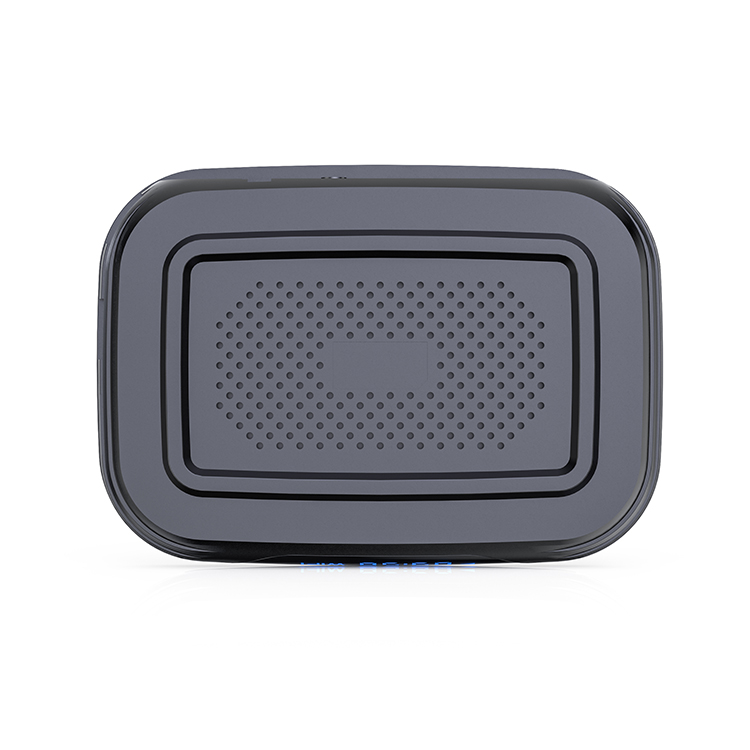

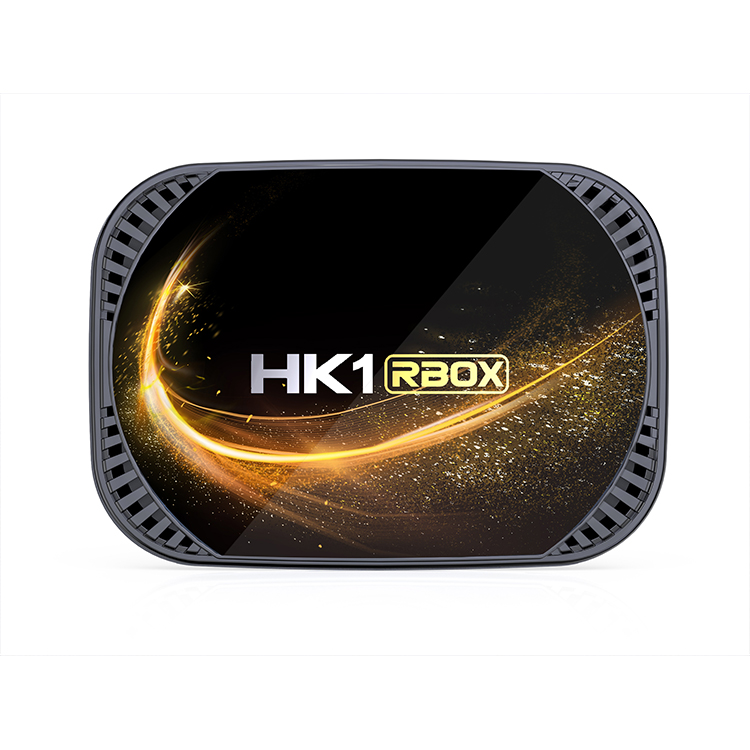

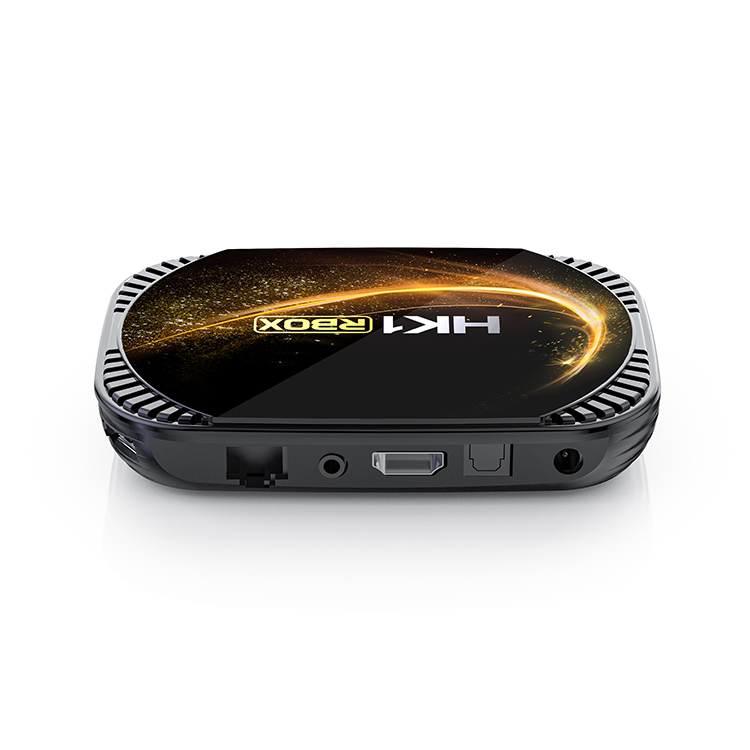

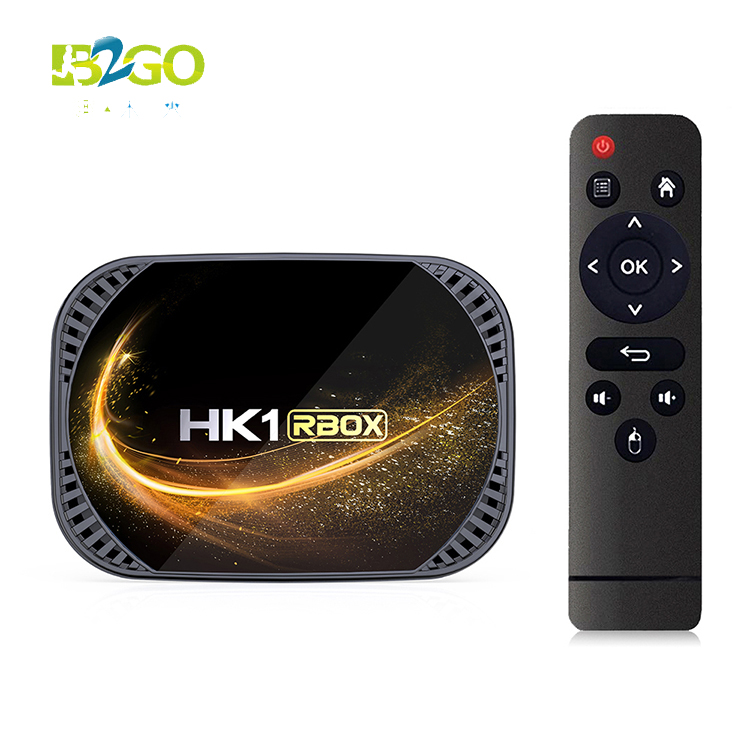

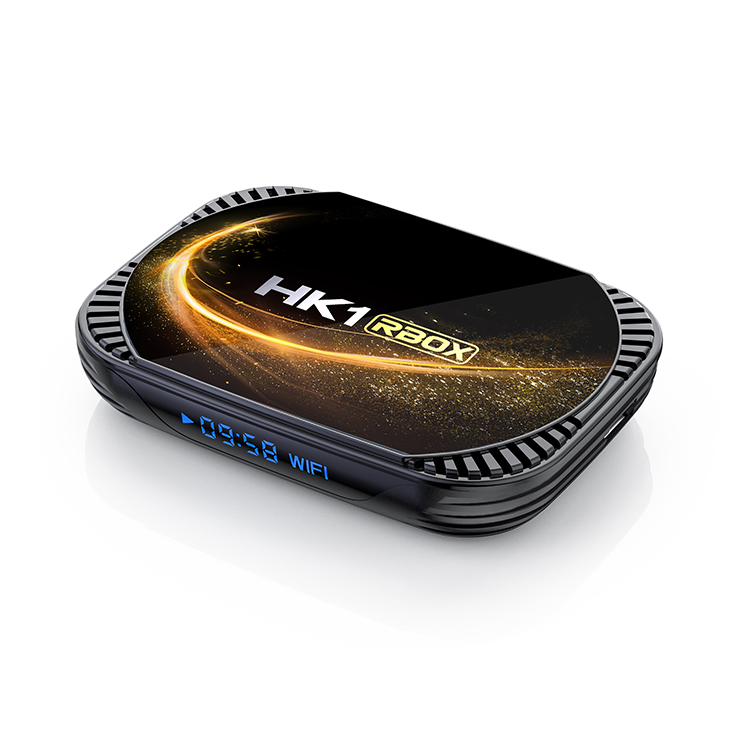

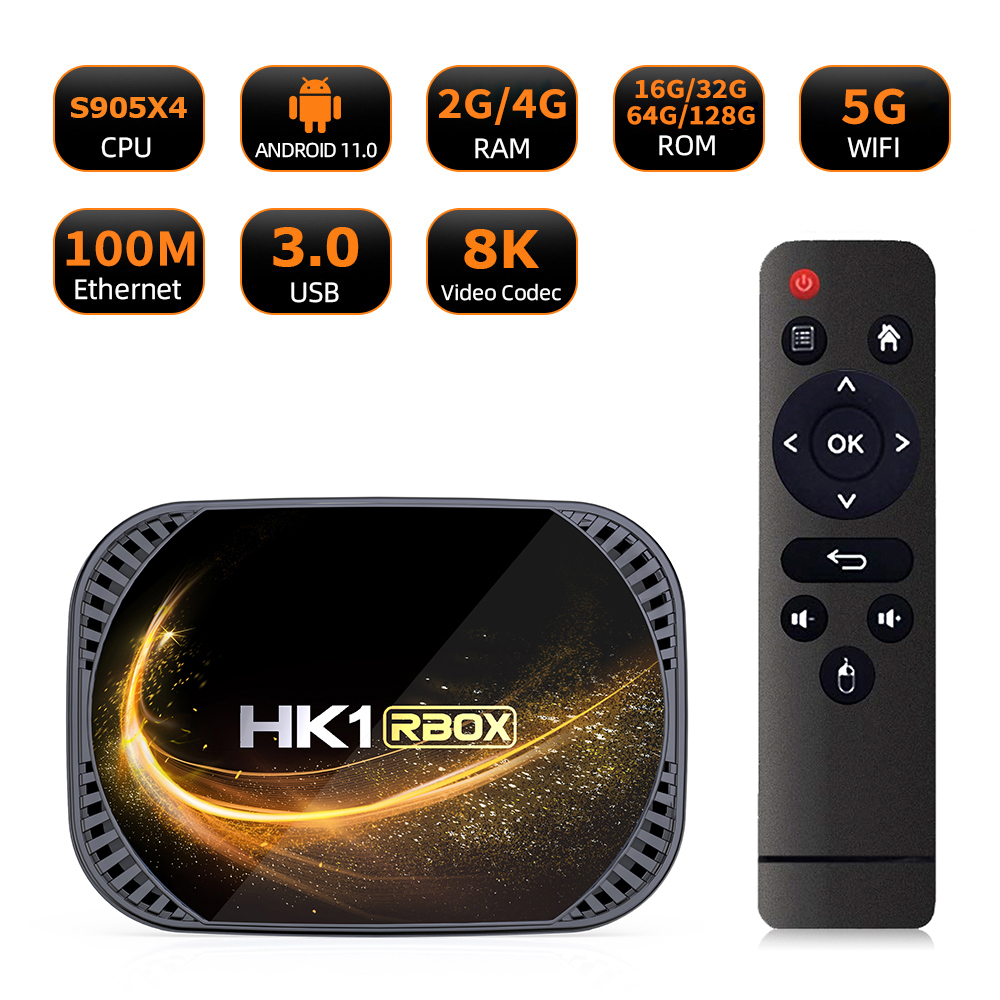

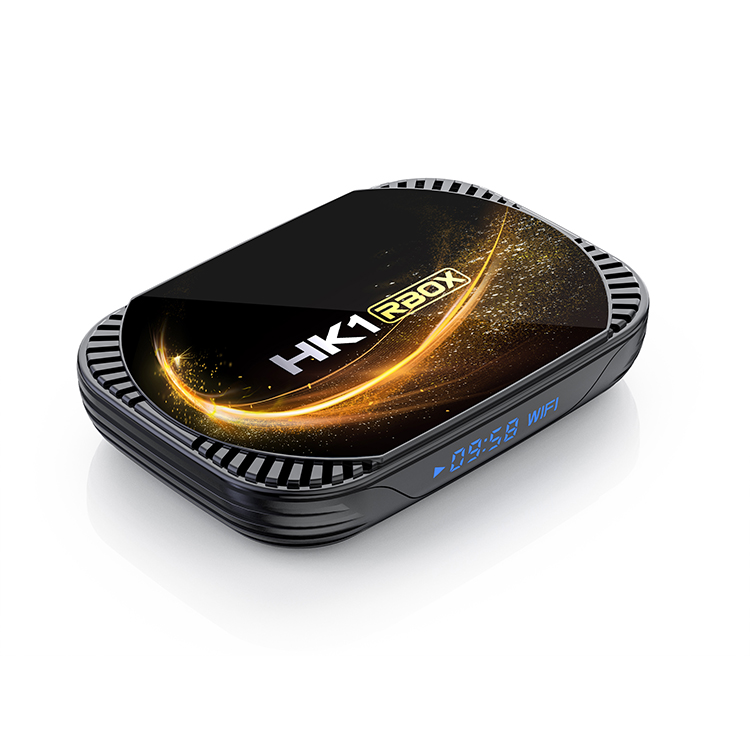

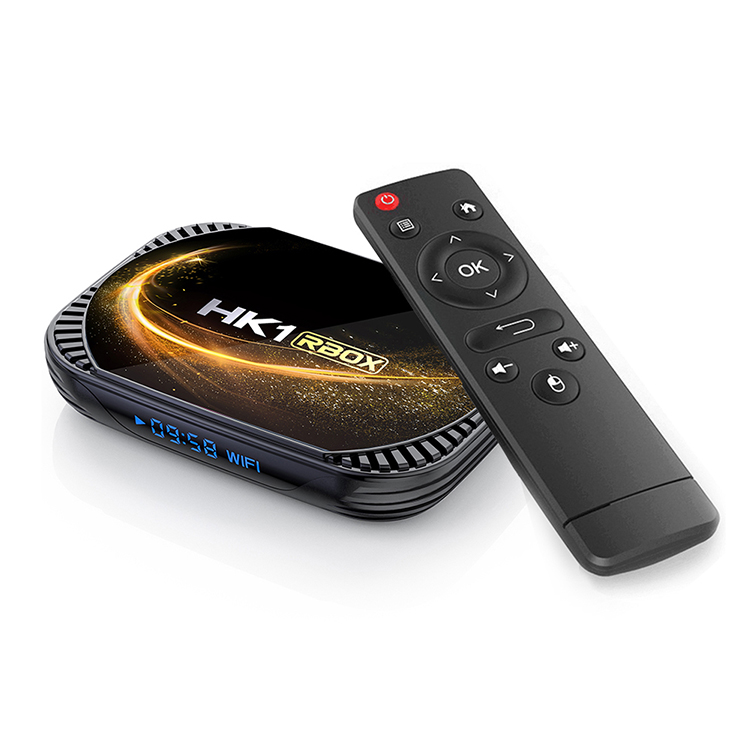

HK1 RBOX X4S TV Box Pictures:
Inquiry Now
Product Name:OEM Customize HK1 Rbox X4S Amlogic S905X4 Quad Core 4K Android Tv Box 2GB 16GB Smart TV Box
