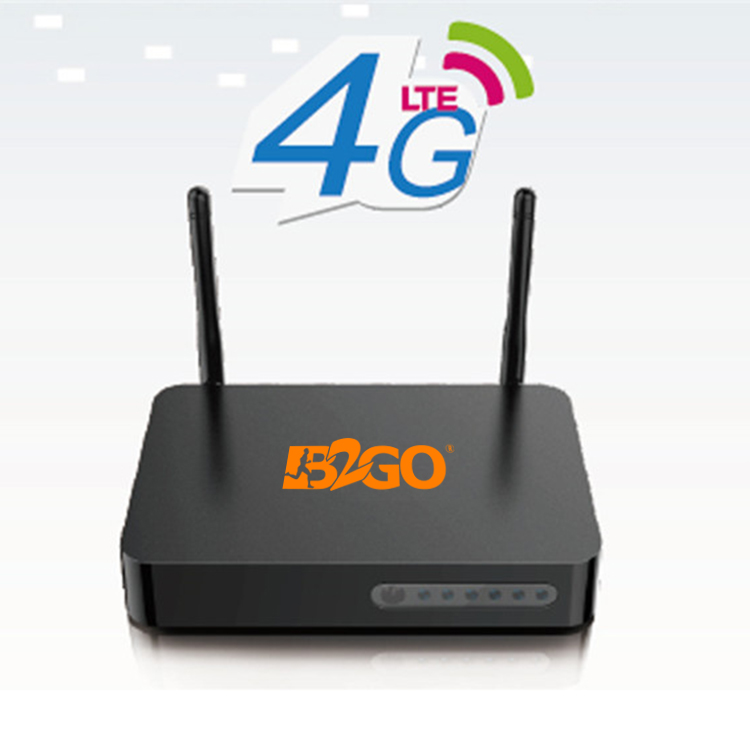

G16 Android Tv Box with Sim Card S905X TV Box
G16 Android Tv Box with Sim Card
CPU：AmlogicS905X Quad core ARM Cortex-A53 CPU 2GHz(DVFS)
GPU：Penta-Core Mali-450 Up to 750Mhz+
SDRAM：1GB/2GB
Flash：8GB/16G/32G-eMMC (Optional)
WiFi：WiFi (802.11b/g/n) 2.4G/5G
Blutooth：BT4.0
Android OS：Android6.0/7.0
Transport protocols：DLNA, Airplay
6,144
8
- Description
| Specifications | |||||||||
| Chipset | Amlogic S905X Quad-Core ARM Cortex-A53 CPU up to 2.0 GHz (DVFS) | ||||||||
| GPU | Penta-Core Mali-450 up to 750 Mhz ( DVFS) | ||||||||
| RAM DDR | 1GB | ||||||||
| ROM EMMC Flash | 8GB | ||||||||
| Internal 4G LTE Module: LTE-FDD/LTE-TDD/WCDMA/TD-SCDMA/EDGE/GPRS/GSM, Down: 150Mbps, UP: 50Mbps |
|||||||||
| Internal recharge lithium battery (optional) | 18650 battery 1-3 or equivalent battery module | ||||||||
| Internal zigbee(optional) | Zigbee/ZigbeePRO/ZigbeeRF4CE/6LoWPAN,@2400-2483.5MHz | ||||||||
| Power Supply Specifications | |||||||||
| Power Supply | DC 5V/2A | ||||||||
| Power Indicator (LED) | Power ON :blue; Standby :Red | ||||||||
| Main Features | |||||||||
| OS | Android 7.1 | ||||||||
| 3D | 3D-HD 1080Px2 | ||||||||
| Support Decoder format | HD MPEG1/2/4,H.264/H.265, HD AVC HP, MVC,,RM/RMVB, Xvid/DivX3/4/5/6, RealVideo8/9/10, HEVC MP-10 | ||||||||
| Support Media format | Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg/Mp4/ | ||||||||
| Support Music format | MP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS/HD/FLAC/APE | ||||||||
| Support Photo format | JPEG/BMP/GIF/PNG/TIFF | ||||||||
| USB host | 2 High speed USB 2.0, support U DISK and USB HDD | ||||||||
| Card reader | SD/SDHC/MMC cards | ||||||||
| HDD file system | FAT16/FAT32/NTFS | ||||||||
| Support Subtitle | SRT/SMI/SUB/SSA/IDX+USB | ||||||||
| High Difinition video output | Support all standard SD/HD/4k2k Ultra HD decoding and output | ||||||||
| Micro-SIM | Support, hidden Micro-SIM card slo | ||||||||
| OSD type of languages | English/French/German/Spanish/Italian/ etc multilateral languages | ||||||||
| LAN | Ethernet:100M LAN, standard RJ-45 ( IEEE 802.3 Gigabit ) | ||||||||
| WIFI | Support IEEE802.11 b/g/n.ac 2.4Ghz+5.8Ghz | ||||||||
| BT | BT 4.0 | ||||||||
| Mouse/ Keyboard | Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle | ||||||||
| HDMI | HDMI 2.0 (CEC and HDCP 2.2 ) , 4K X 2K @60 fps | ||||||||
| AV | Support | ||||||||
| 4G | Support | ||||||||
| Software Specifications | |||||||||
| Network Function | Kodi,Miracast,Airplay,Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc. | ||||||||
| Other feature | Free Internet searching,thousands of android applications,many kinds of
games,etc. |
||||||||
G16 Android Tv Box with Sim Card S905X TV Box
| 4G LTE Module(optional) | |
| Internal 4G LTE Module(optional) | LTE-FDD/LTE-TDD/WCDMA/TD-SCDMA/EDGE/GPRS/GSM, downstream 150Mbps, upstream 50Mbps |
| MHZ-E (EUROPE) | B1/B3/B5/B7/B8/B20@FDD LTE, B1/B5/B8@WCDMA, 850/900/1800/1900@GSM |
| MHZ-A (AMERICA) | B2/B4/B8/B17@FDD LTE, B38/B39/B40/B41@TDD LTE, B1/B8@WCDMA,B34/39@TD-SCDMA, 900/1800@GSM |
| MHZ-CE (CHINA/INDIA) | B1/B3/B5/B8@FDD LTE, B38/B39/B40/B41@TDD LTE, B1/B8@WCDMA, B34/B39@TD-SCDMA, BC0@CDMA2000 1X/EXDO, 900/1800@GSM |
| MHZ-E(EMEA/KOREA/THAILAND/INDIA) | B1/B3/B5/B7/B8/B20@FDD LTE;B38/B40/B41@TDD LTE; B1/B5/B8@WCDMA; B3/B8@GSM |
| MHZ-V(NORTH AMERICA) | B4/B13@FDD LTE |
| MHZ-A(NORTH AMERICA) | B2/B4/B12@FDD LTE; B2/B4/B5@WCDMA |
| MHZ-AU(Latin America/ANZ/TAIWAN) | B1/B2/B3/B4/B5/B6/B7/B8/B28@FDD LTE; B40@TDD LTE; B1/B2/B5/B8@WCDMA; B2/B3/B5/B8@GSM |
| MHZ-J(JAPAN) | B1/B3/B8/B18/B19/B26@FDD LTE; B41@TDD LTE; B1/B6/B8/B19@WCDMA |
| Internal zigbee(optional) | Zigbee/ZigbeePRO/ZigbeeRF4CE/6LoWPAN, @2400-2483.5MHz |
| Main Features | |
| Video Docoder | H.265 4K @60fps 10btis, VP9 Profile 2, H.264 4K@30fps, AVS+ 1080P@60fps, H.264 1080P @60fps |
| Decoder format | HD MPEG1/2/4,H.265/HEVC, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6, RealVideo8/9/10 |
| Media format | Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg |
| Music format | MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE |
| Photo format | HD JPEG/BMP/GIF/PNG/TIFF |
| Network Function | Miracast, Airplay, Skype chatting, Picasa, Youtube, Flicker, Facebook, Online movies, etc. |
| Language | Chinese, English ,Germany, Japanese, Korea etc. |
| Port Specifications | |
| USB host | 2* external USB2.0, 2*internal USB 2.0 |
| Card reader | 1* TF CARD |
| Micro-SIM | 1* Micro-SIM, 1* hidden Micro-SIM card slot |
| HDTV | 1* HDTV output |
| LAN | 1* RJ45 LAN Ethernet 10M/100M |
| AV OUT | 1* AV-OUT/IR-in (optional) |
| Others | |
| Power Supply | Input100-240V AC, Output5V/2A DC |
| Internal recharge lithium battery(optional) | 18650 battery 1-3 pcs or equivalent battery module |
