Allwinner H313 Quad Core Lemontv ATV box 2GB 8GB 2.4/5g wifi Android 11 4K Display TV box WIFI6
Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee
201
0
- Description
Allwinner H313 Quad Core Lemontv ATV box Specifications:
| Basic parameters | ||
| System | CPU: Quad-core ARM Cortex™-A53 | |
| GPU: Mali-G31 | ||
| DRAM: DDR3 2GB | ||
| FLASH: EMMC 8GB | ||
| OS: Android Q(10.0) | ||
| Network | RJ45 Interface 10M/100M adaptive | |
| Build in Wi-Fi 2.4GHz+5GHz,802.11a/b/g/n/ac/ax,WIFI6 | ||
| Build in Bluetooth 5.4 | ||
| I/O | ||
| Video Output | HDMI2.0(4K60), AV | |
| Network | RJ45, Buildin Wi-Fi antenna | |
| Peripheral Interface | USB2.0x2 | |
| Power Interface | DC 5V 2A | |
| Other Interface | IR receiver, LED indicato | |
| Media | ||
| Video | Decoder: • H.265 Main10@L5.1 decoder up to 4K@60fps • VP9 Profile 2 decoder up to 4K@30fps • AVS2 JiZhun 10bit decoder up to 4K@30fps • H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps • Multi-format 1080p@60fps video playback formats, including H.264 BP/MP/HP, H.263 BP, VP8, MPEG-1 MP/HL, MPEG-2 MP/HL, MPEG-4 SP/ASP@L5, AVS+/AVS JiZhun, WMV9/VC1, etc |
|
| Format: MKV, TS, M2TS, MOV, MP4, RM, RMVB, AVI, MPG, MPEG, DAT, VOB, FLV etc. |
||
| Audio | Decoder: MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio, AC-3/DD+/AC-4, MPEG-HFormat: MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc. |
|
| Subtitle Format | SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation | |
| Photo Format | HD JPEG/BMP/GIF/PNG/TIFF | |
| Features | ||
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming | |
| Multi-screen interactive | Miracast, DLNA and Airplay | |
| Local Media Playback | Video/Audio/Picture | |
| TV APP | Stalker/Ministra/Xtream code/M3U(4K HDR10), Google Play(TV version), Google Voice Assistant, YouTube(4K), Netflix(TV Version), Disney+(TV Version up to 720P), HBO Max(TV Version) Android TV APP | |
| External Storage | USB storage max to 2TB (FAT32/NTFS) | |
| System Upgrading | Upgrading via USB disk or internet | |
| Other parameters | ||
| Input Voltage | DC IN 5V/2A | |
| Power Consumption | 8W Max | |
| Operation Temperature | 0~40℃, Humidity<95% | |

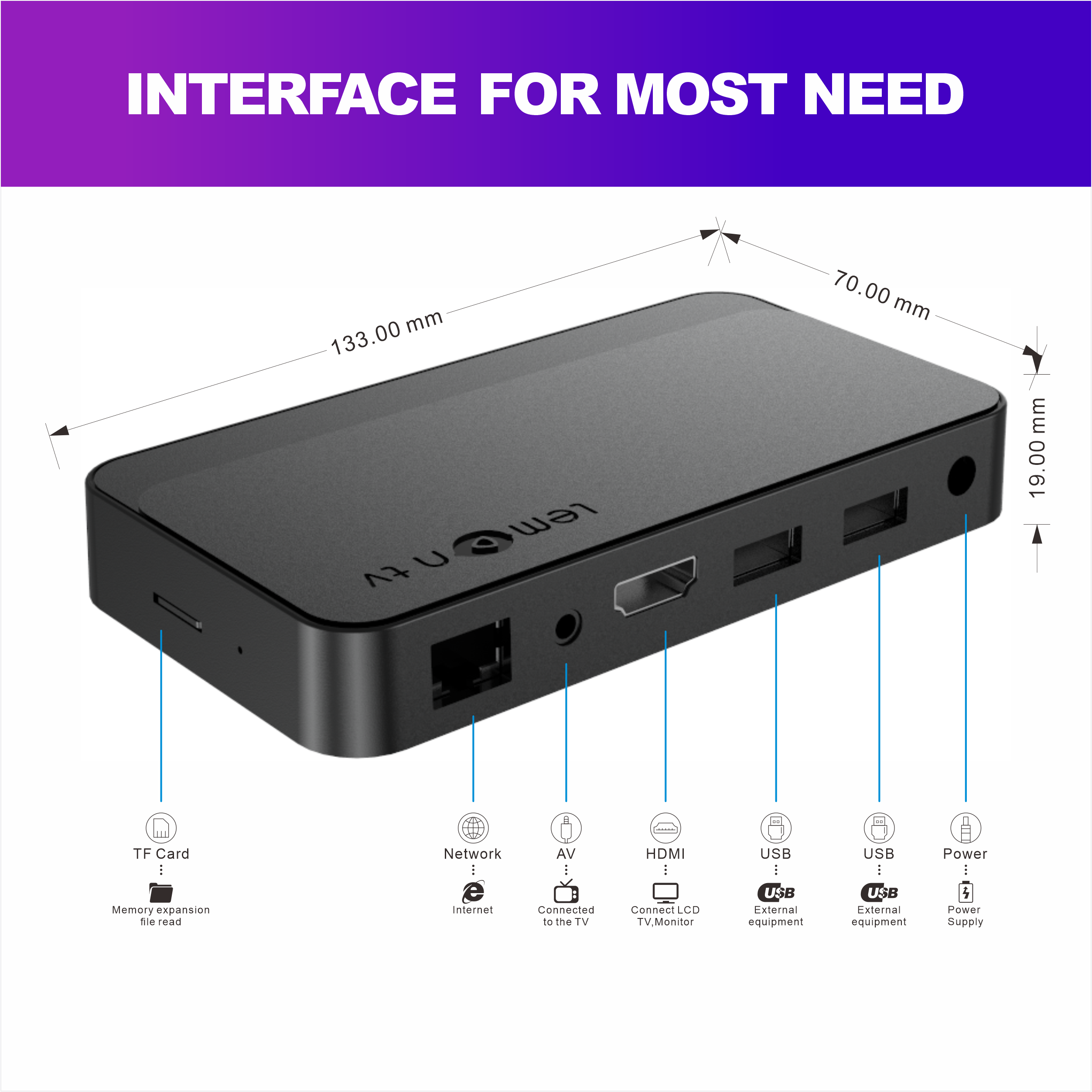

| Physical characteristics | Size: 130*70*18MM | |
| Weight: | ||
| Material | ||

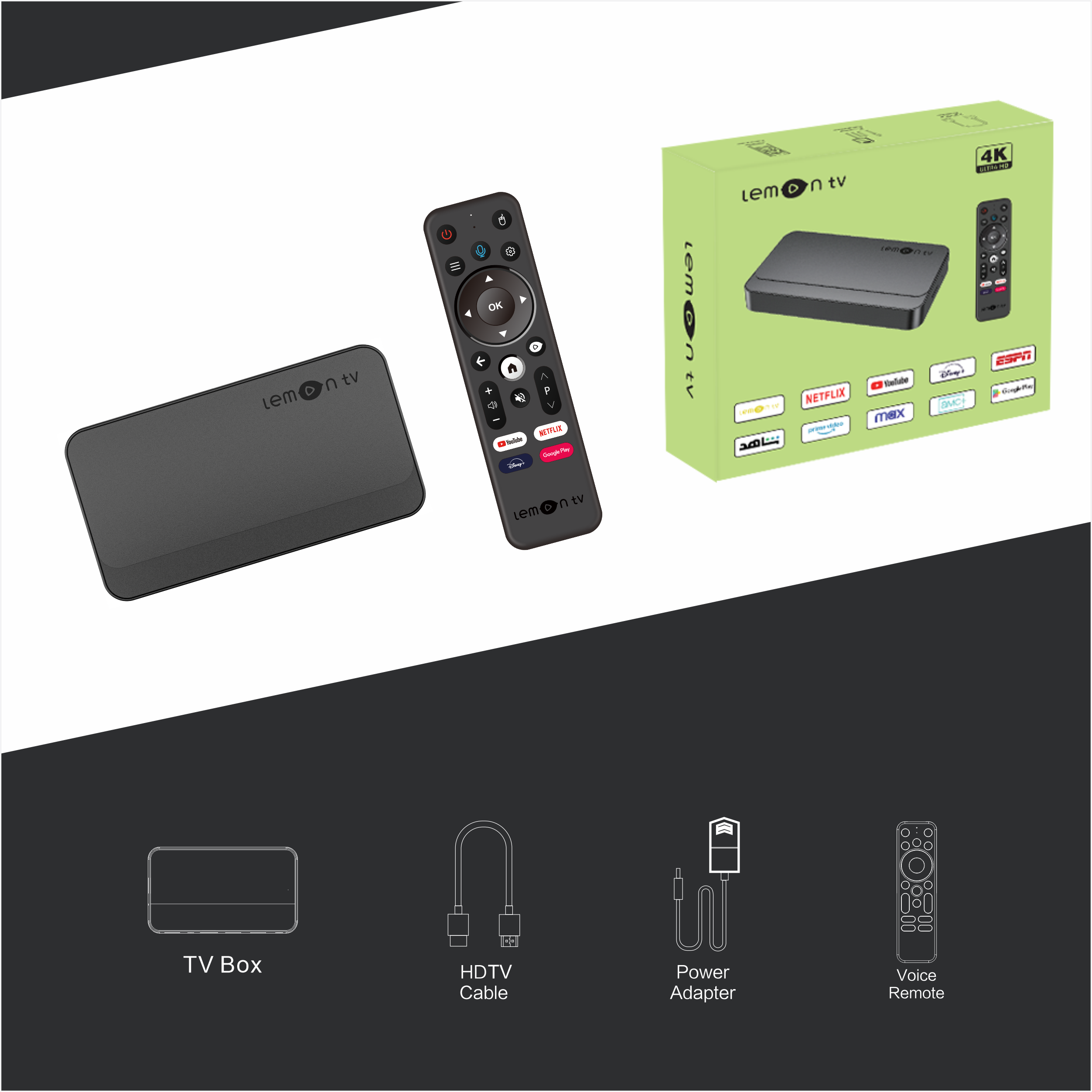

| Proposed Accessory | Power adapter, User manual, HDMI cable, BT Voice RCU | |

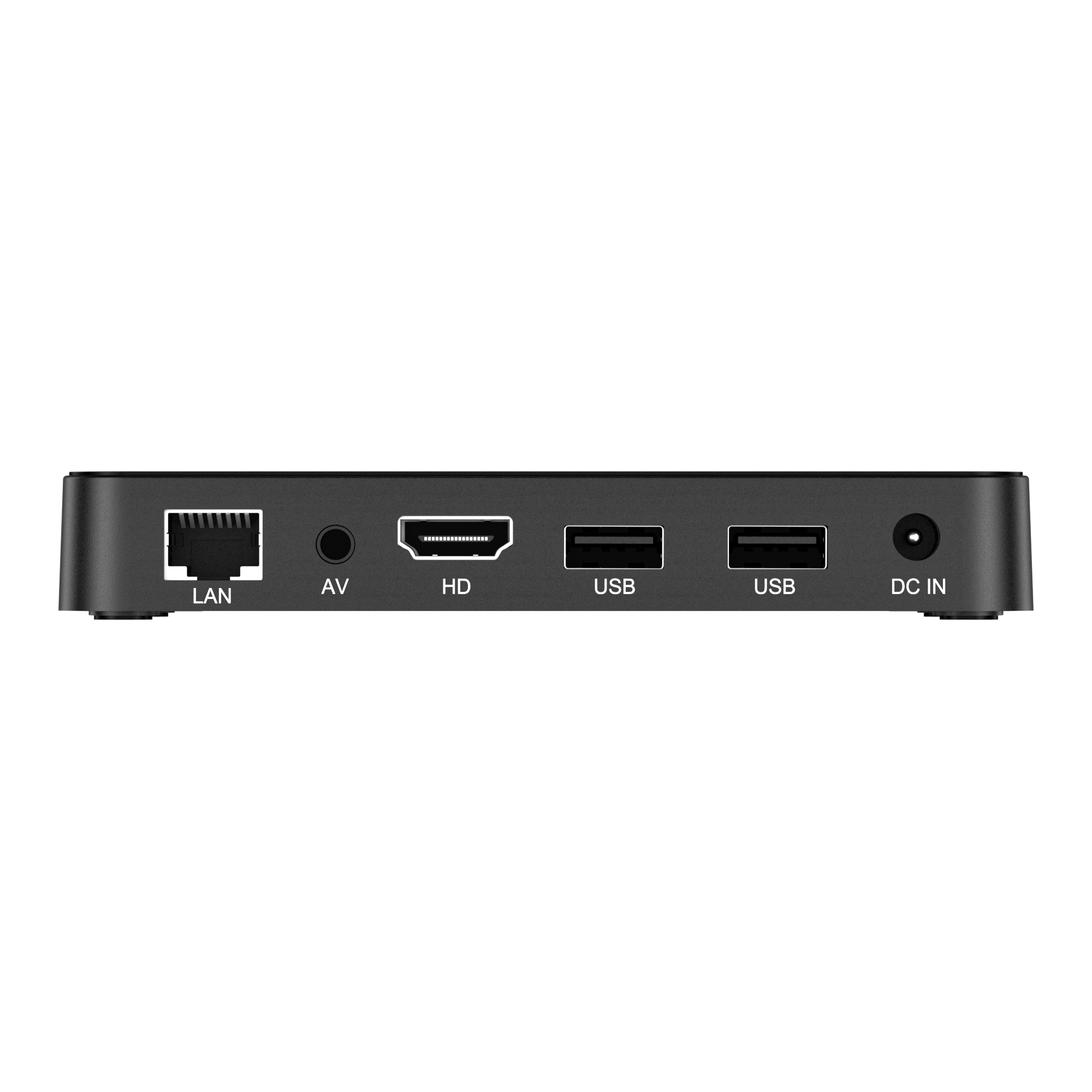

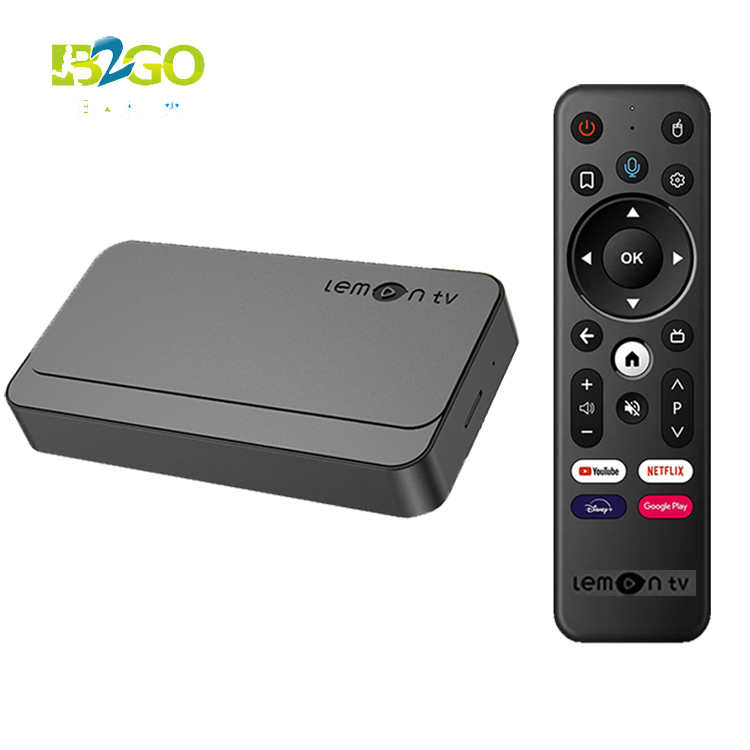

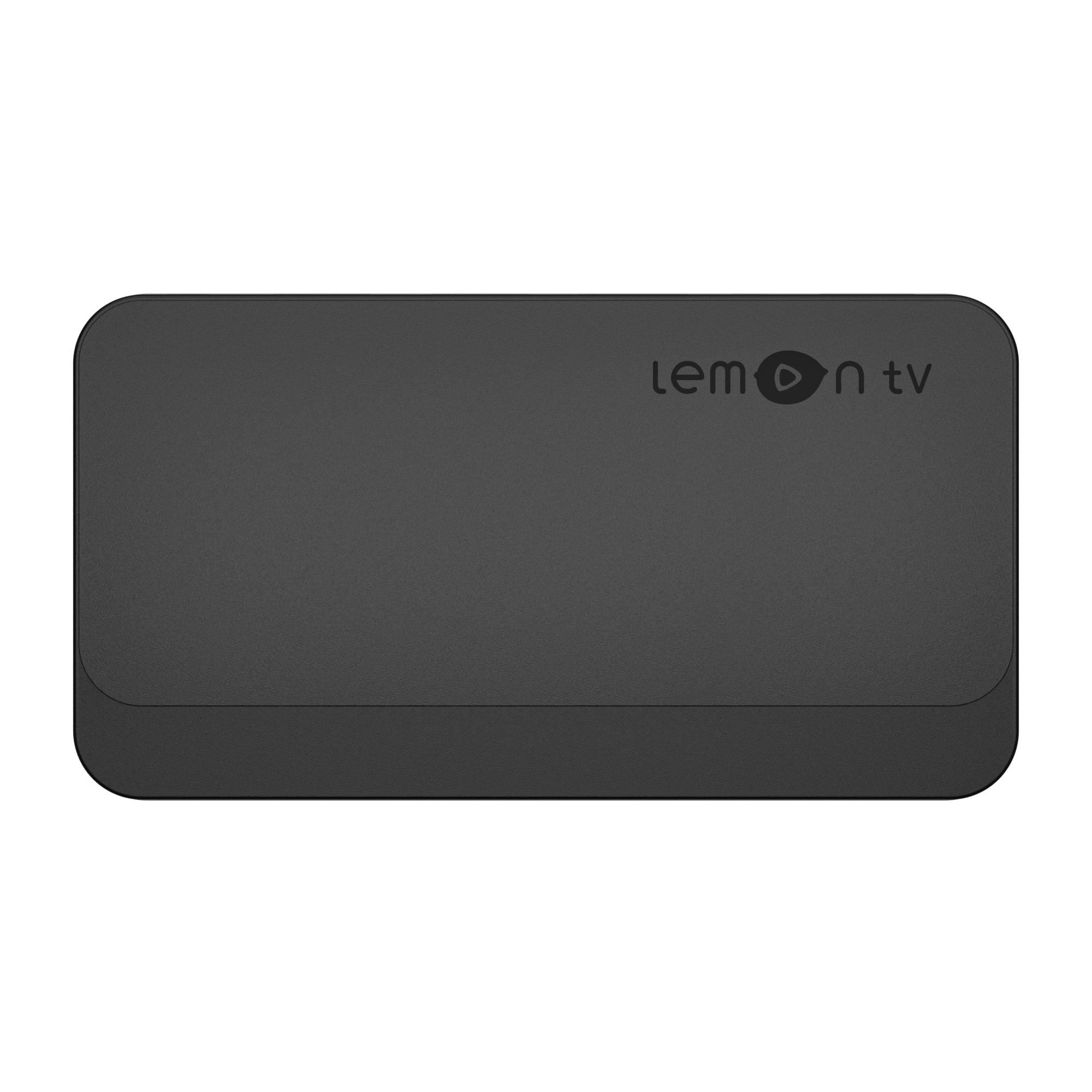

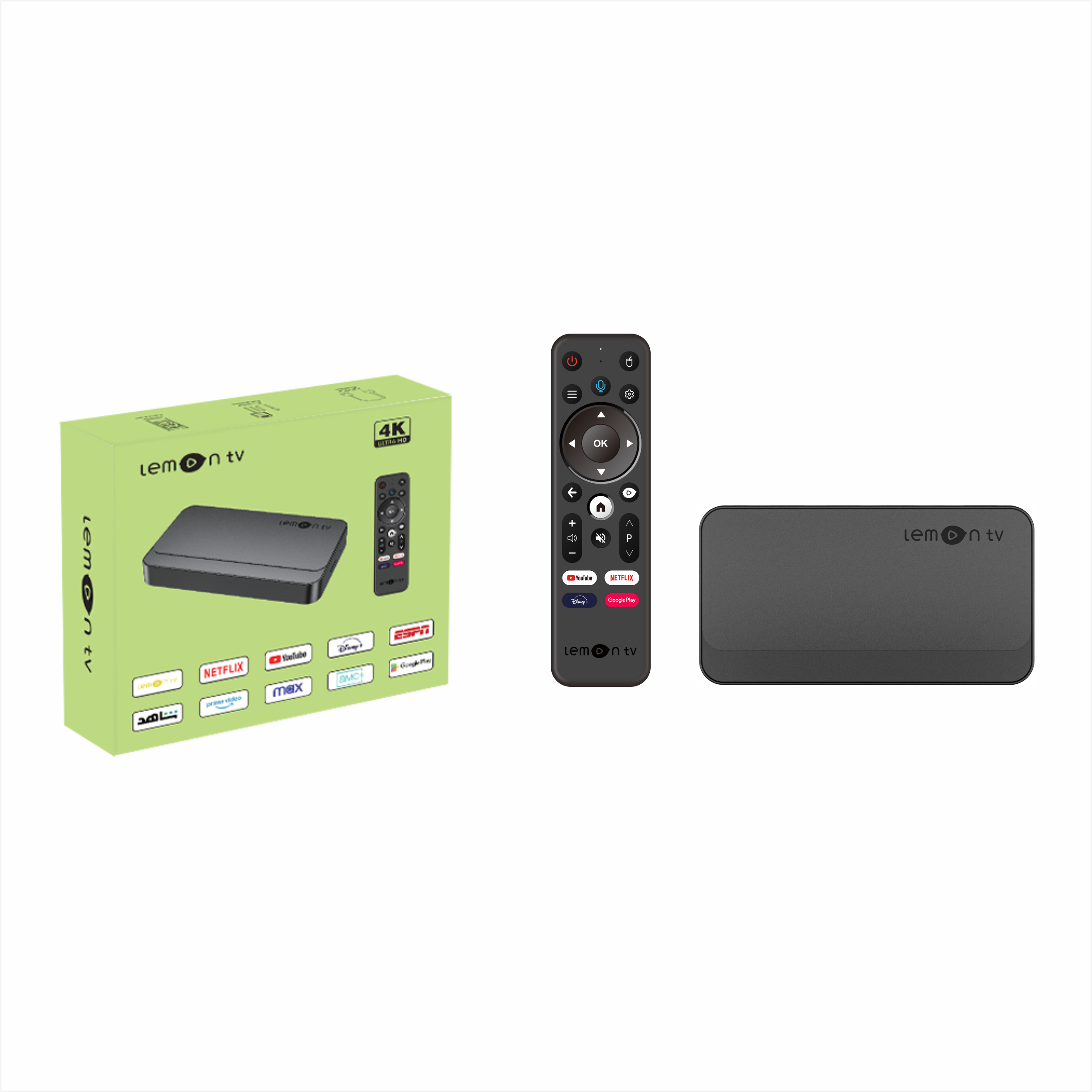

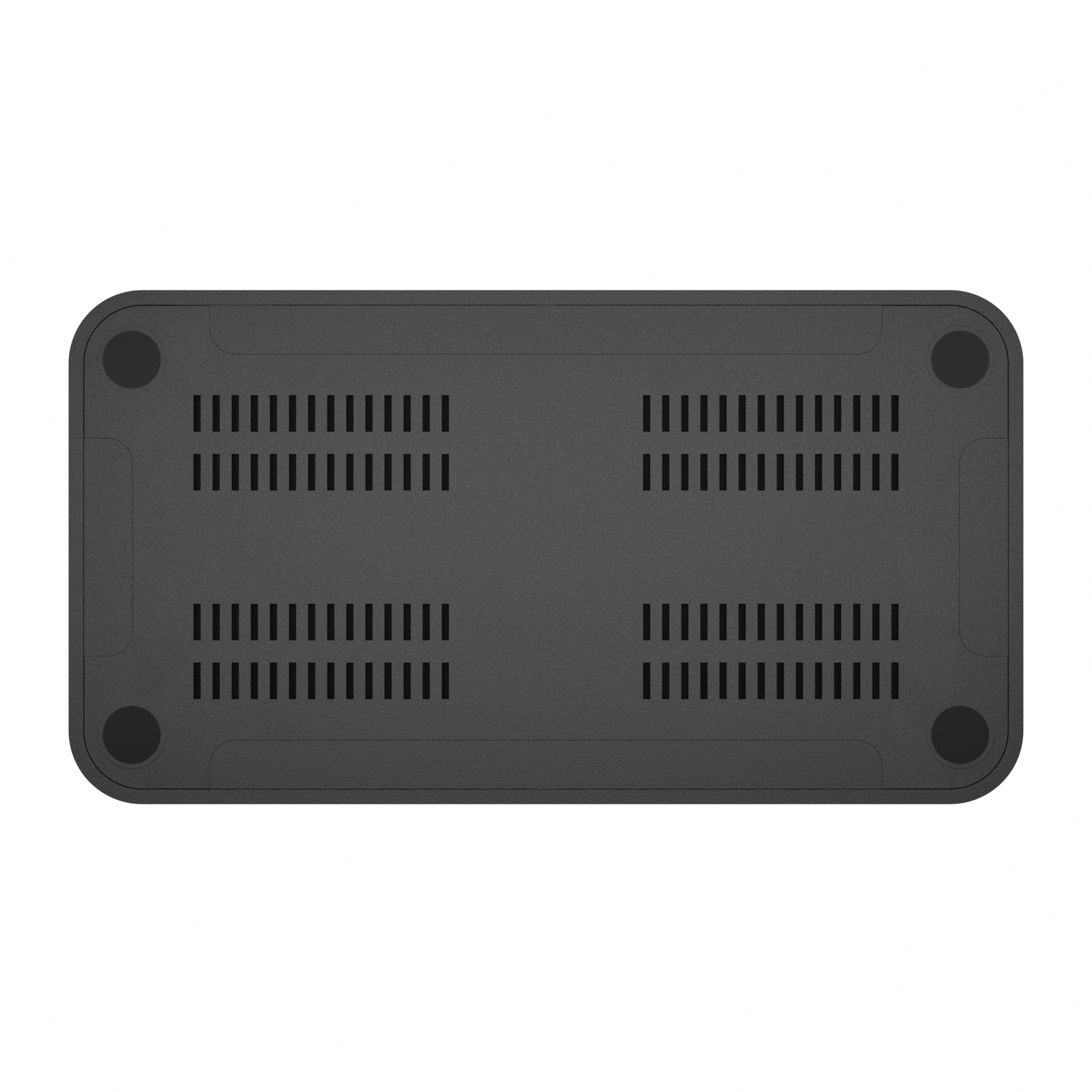

LemonTV Pictures:
