OEM Customize X96 X10 Amlogic S928X Android 11 8K Android Tv Box with BT5.2 Dual Band Wifi 6
Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee
275
1
- Description
8K Android TV Box Specifications:
|
Product Model
|
X96 X10
|
||||
|
Basic parameters
|
|||||
|
CPU
|
Chipset
|
Amlogic S928X
|
|||
|
Architecture
|
A big core ARM Cortex-A76 and quad core ARM Cortex-A55 CPU
|
||||
|
GPU
|
Chipset
|
ARM G57™ MC2 GPU
|
|||
|
RAM
|
Capacity
|
4GB/8GB (LPDDR4 or LPDDR4X)
|
|||
|
ROM
|
Capacity
|
32GB (16GB/32GB/128GB optional)
|
|||
|
External storage
|
USB Storage Devices
|
Supported
|
|||
|
Micro SD card
|
SupportedYes
|
||||
|
Software
|
|||||
|
Operating system
|
OS Version
|
Android 11
|
|||
|
Language
|
Multi-Language
|
||||
|
Multimedia
|
Video
|
Video Decoder:
|
|||
|
Support 8K@60fps Video decoding
|
|||||
|
VP9 Profile-2@6.1 up to 8Kx4K@60fps
|
|||||
|
H.265 HEVC MP-10@L6.1 up to 8Kx4K@60fps
|
|||||
|
AVS3 Phase 1 up to 8Kx4K@60fps
|
|||||
|
AVS2-P2 Profile up to 8Kx4K@60fps
|
|||||
|
H.264 AVC HP@L5.2 up to 4Kx2K@60fps
|
|||||
|
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
|
|||||
|
WMV/VC-1 SP/MP/AP up to 1080P@60fps
|
|||||
|
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
|
|||||
|
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
|
|||||
|
Multiple language and multiple format sub-title video support
|
|||||
|
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
|
|||||
|
Supports JPEG thumbnail, scaling, rotation and transition effects Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso,*.mp4, *.rm and *.jpg file formats
|
|||||
|
Audio
|
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
|
||||
|
|
JPEG image encoding up to 1080P@60fps
|
||||
|
Network service
|
|||||
|
Wi-Fi
|
WLAN Standards
|
IEEE802.11a/b/g/n/ac/ax
|
|||
|
Date Rate
|
MAX 1200Mbps
|
||||
|
Frequency
|
2.4GHZ& 5.8GHZ
|
||||
|
BT
|
BT
|
BT 5.2
|
|||
|

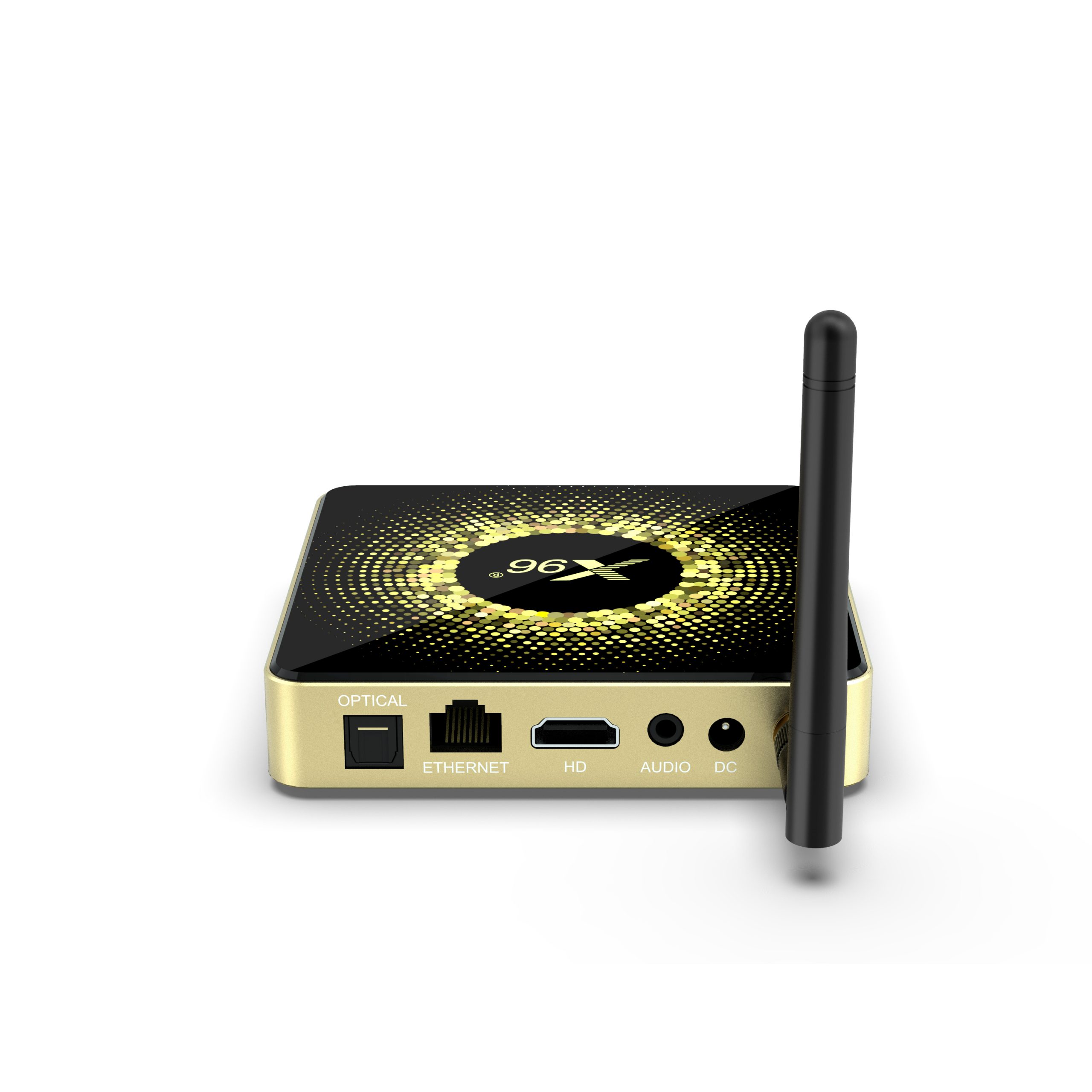

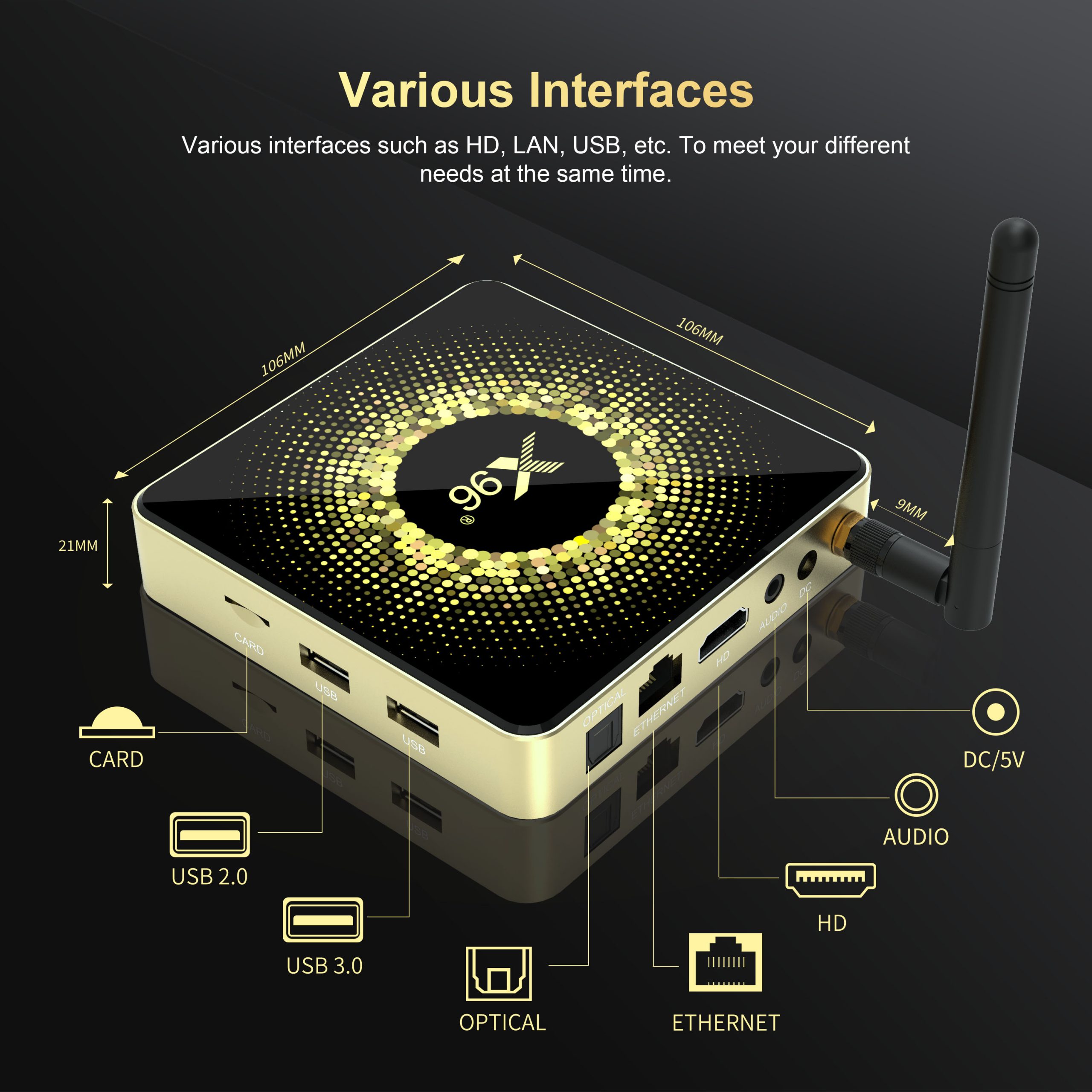

Interface
|
|||||
|
Charge
|
DC connector
|
DC IN(5V/3A)
|
|||
|
Video output:
|
HD
|
HD 2.1a 8Kx4K@60hz max resolution output
|
|||
|
Audio
|
1* SPDIF OUT
|
AUDIO OUT: 3.5mm AUDIO JACK
|
|||
|
External memory
|
1* TF card
|
1* USB3.0 1* USB2.0
|
|||
|
Ethernet
|
1000M
|
RTC optional
|
|||
|
Appearance
|
|||||
|
Body Material
|
ABS，Acrylic, Aluminum alloy
|
||||
|
Color
|
golden
|
||||
|
Size
|
106*106*21(mm)
|
||||
|
Weight
|
0.246Kg
|
||||
|
Cerifications(For Unit)
|
|||||
|
Standard
|
CE
|
||||
|
RoHS
|
|||||
|
Others
|
Optional
|
||||
|

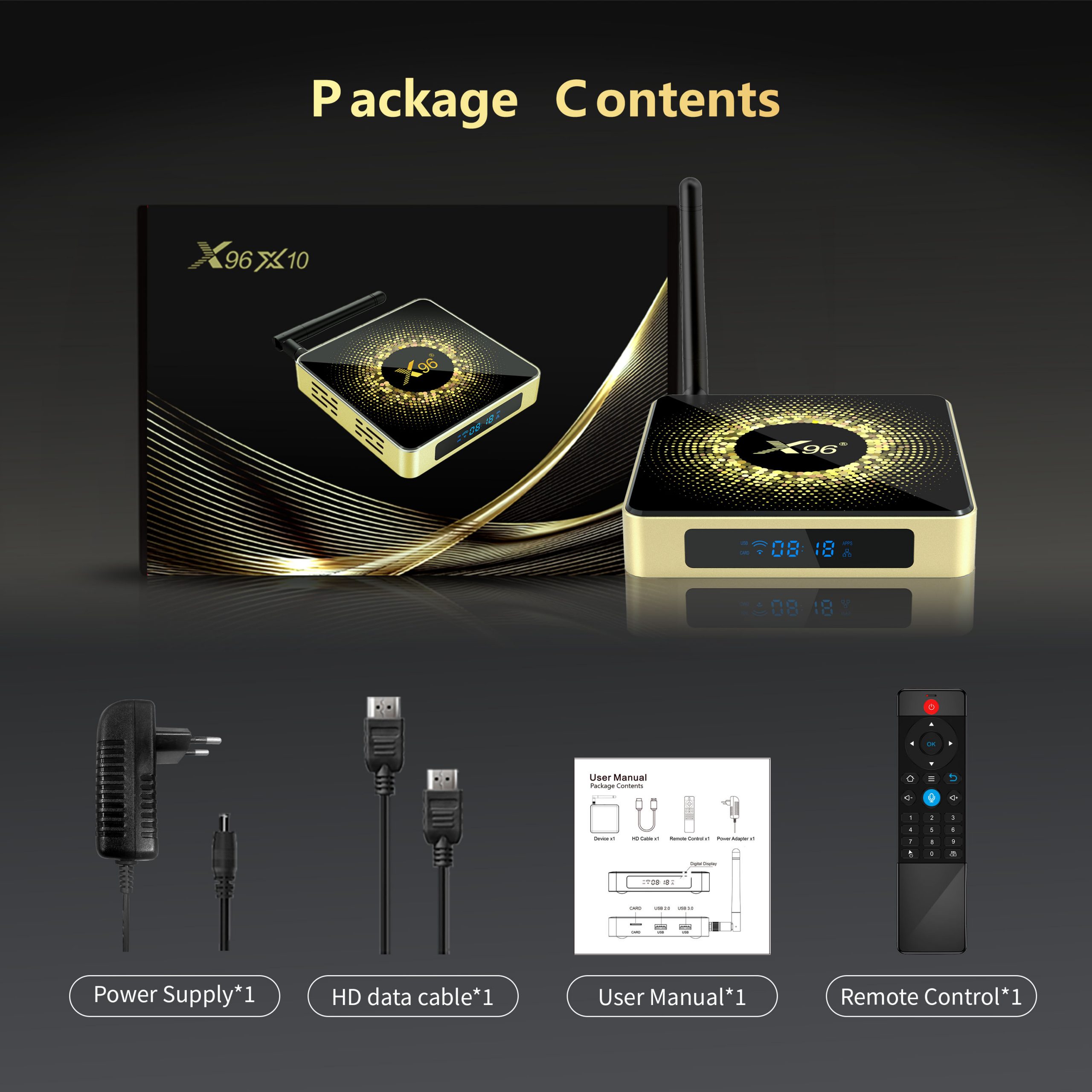

Package contents
|
Shipping Info
|
||||
|
User manual
|
*1
|
Gift Box Dimension(mm)
|
205*140*50(mm)
|
||
|
Gift Box
|
*1
|
Carton Size(mm)
|
420*270*305 (mm）
|
||
|
Remote control
|
*1
|
Qty Per Carton(pcs)
|
20pcs
|
||
|
HD external cable
|
*1
|
Gift Box.G.W(gs)
|
0.537KG
|
||
|
Power adapter
|
*1
|
Export carton (G.W.)(kgs)
|
10.74KG
|
||

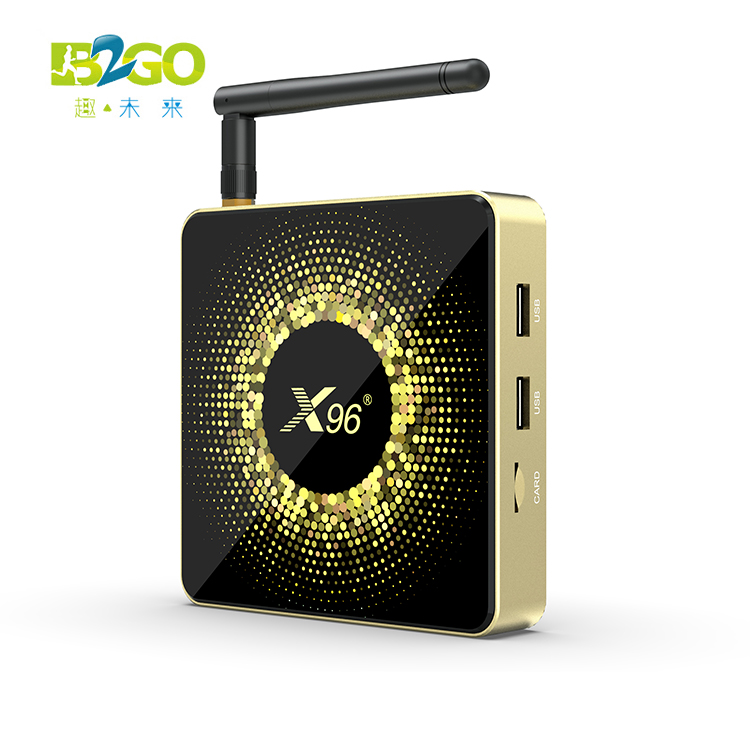

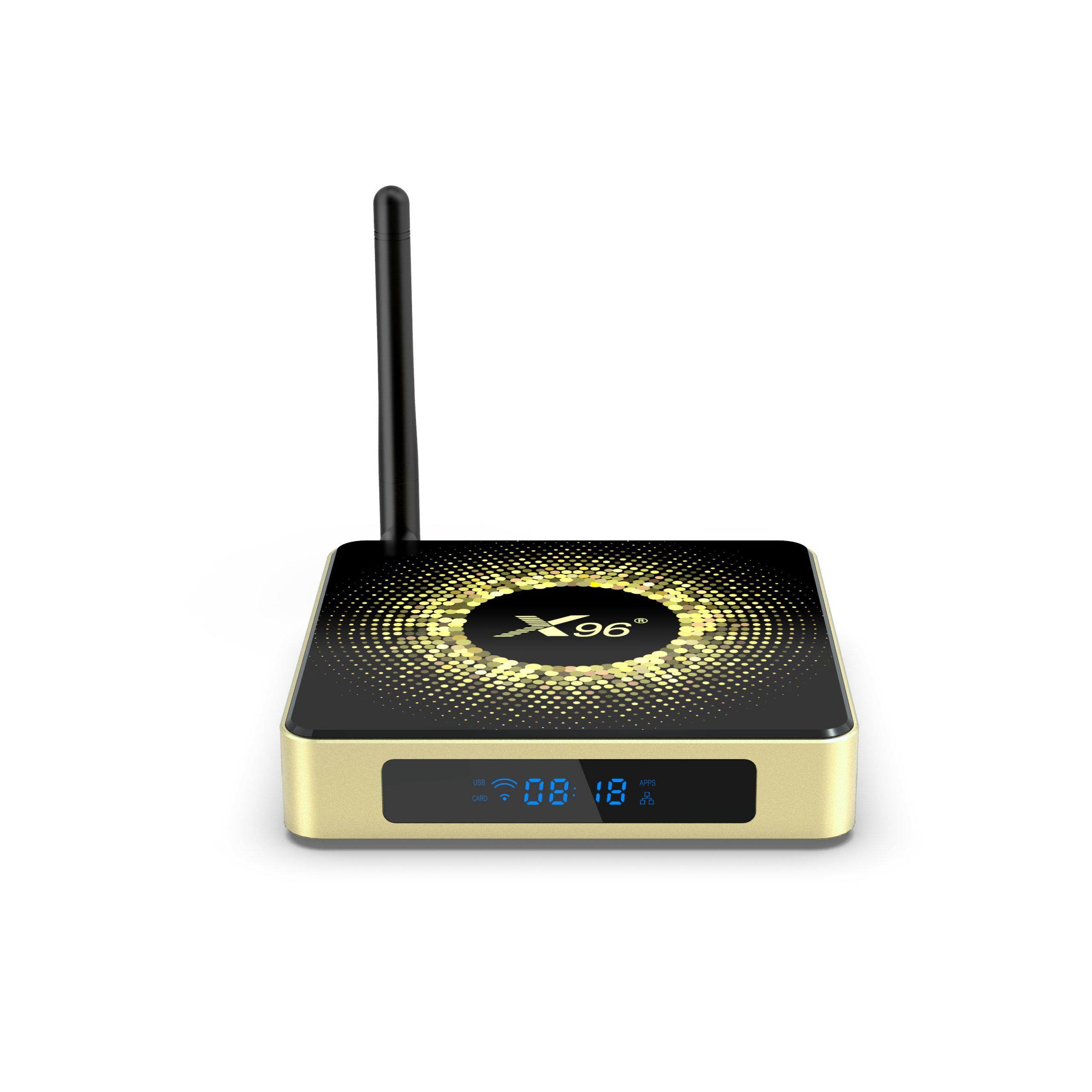

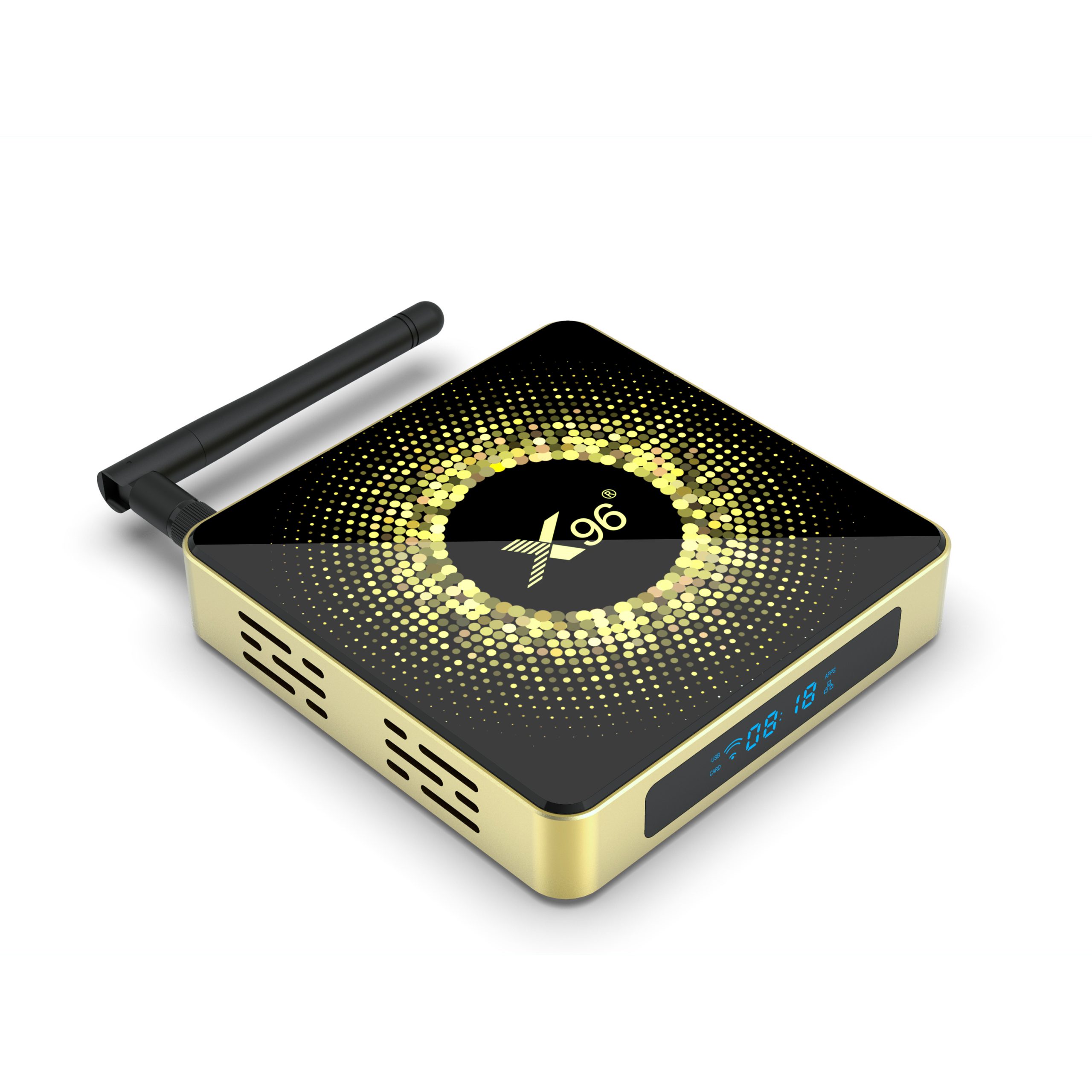

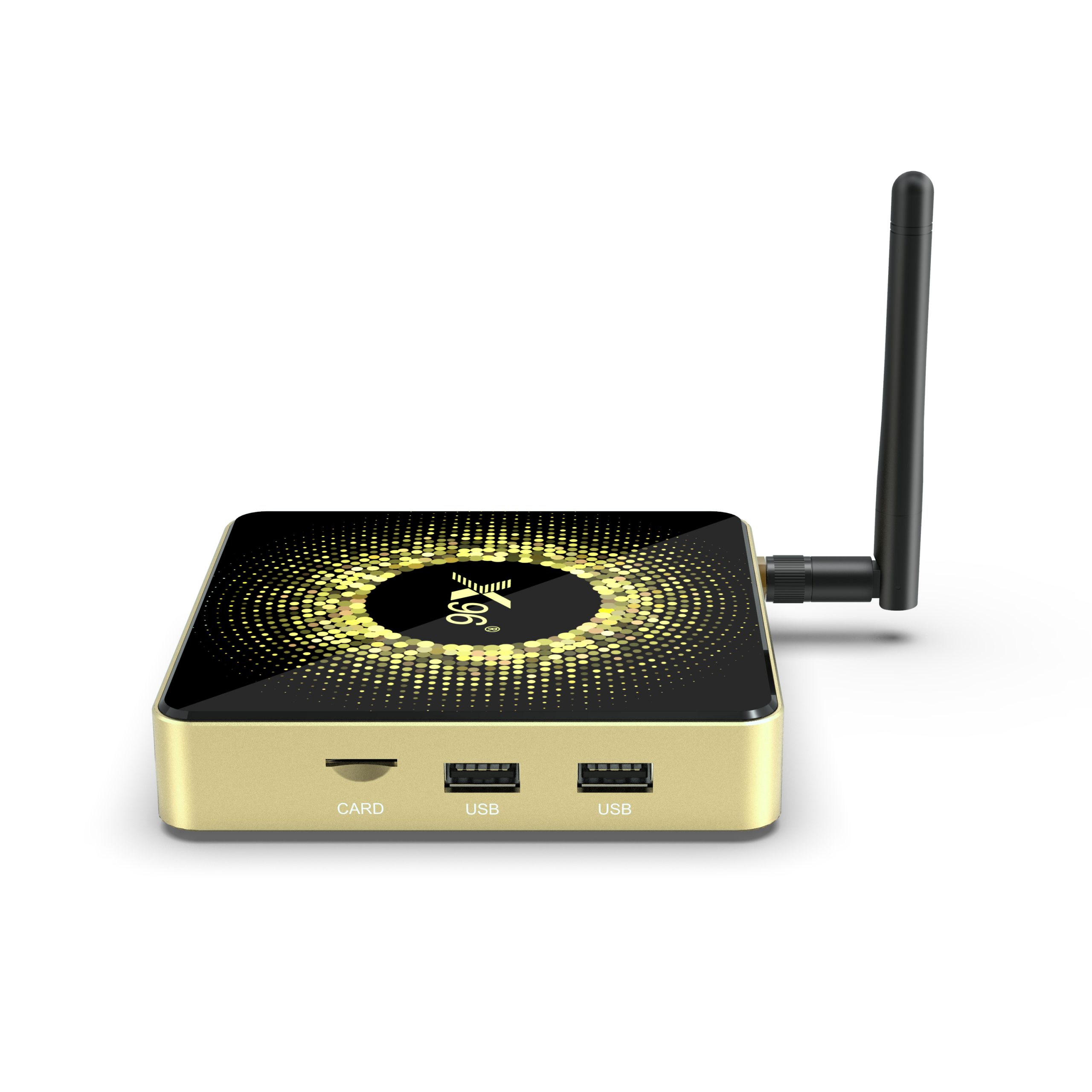

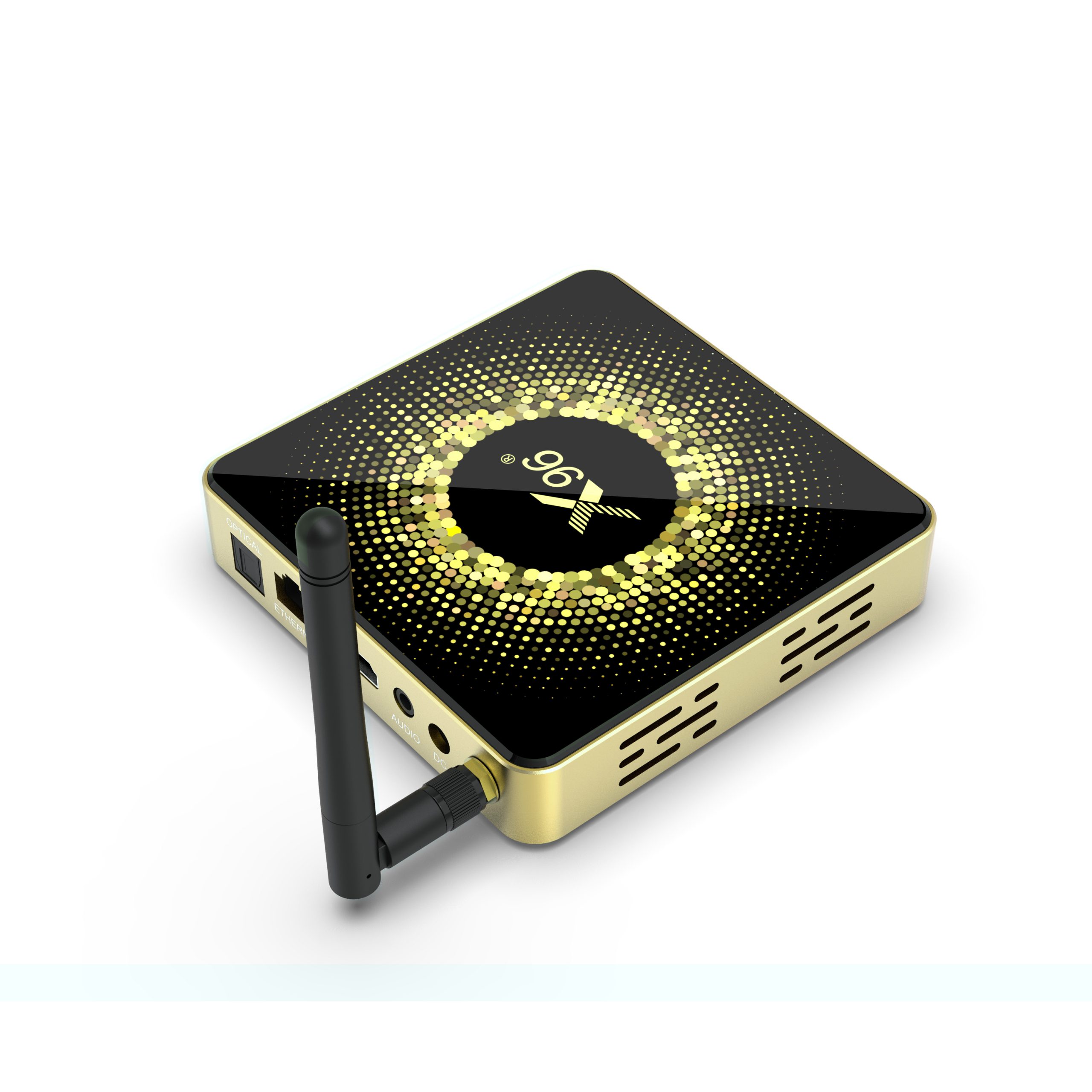

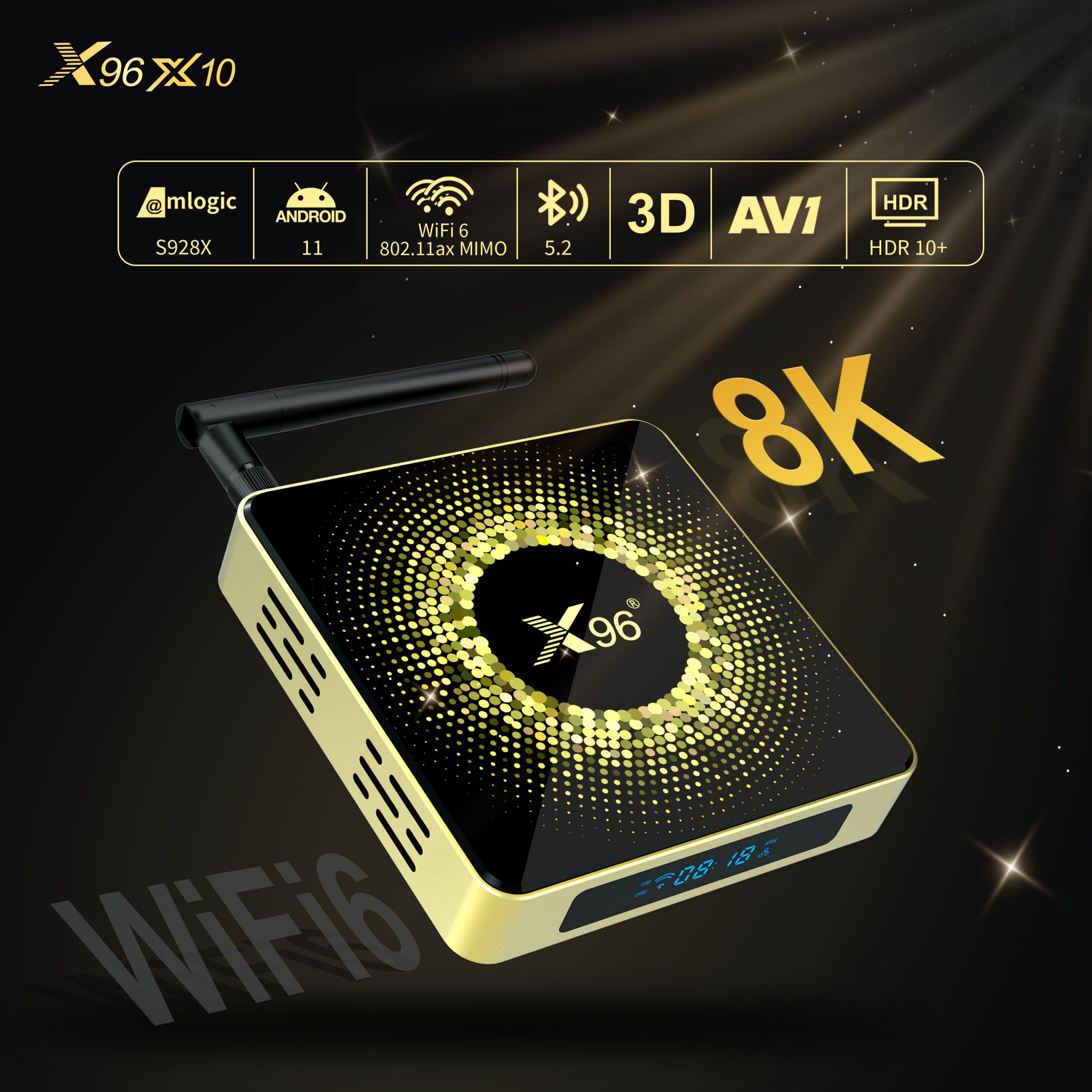

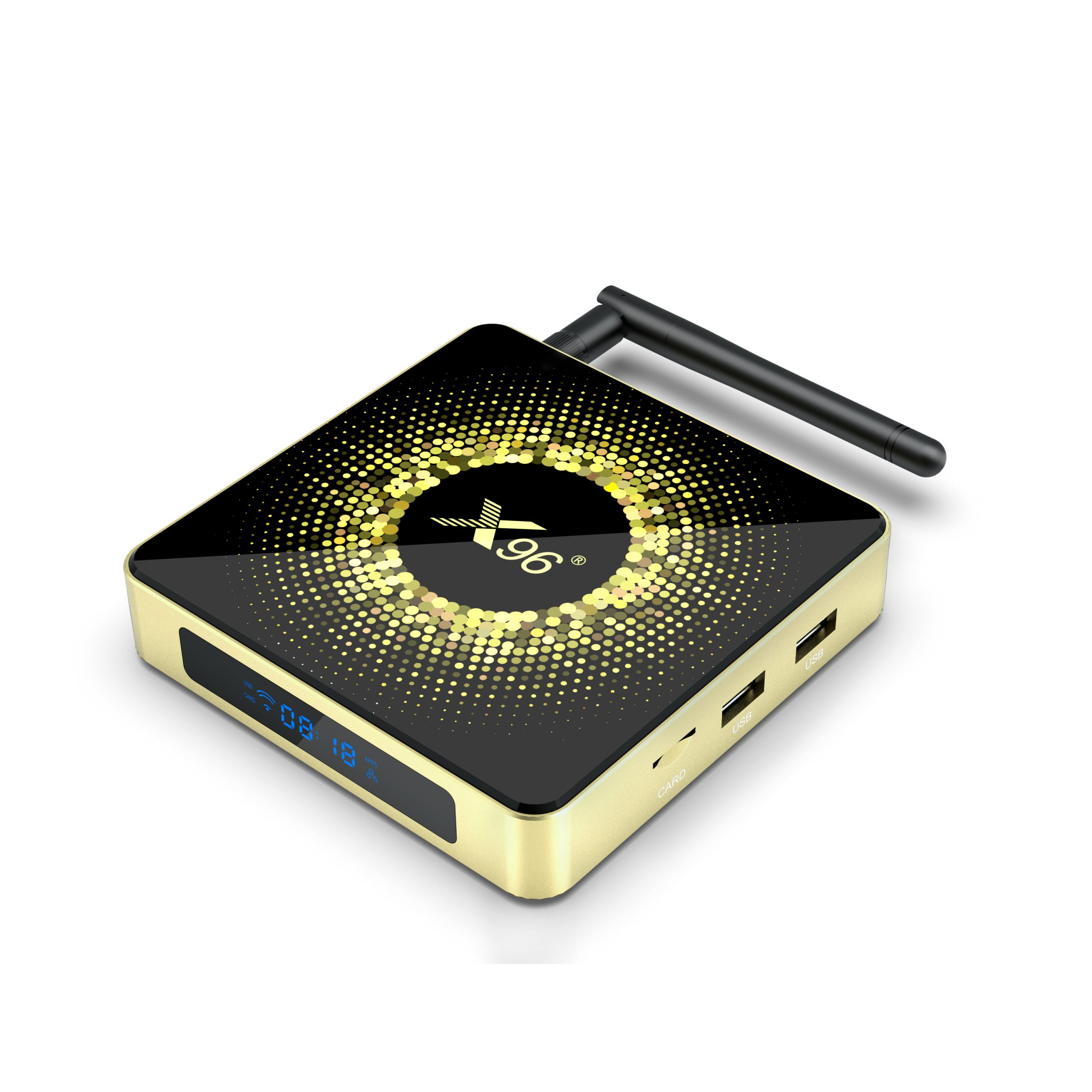

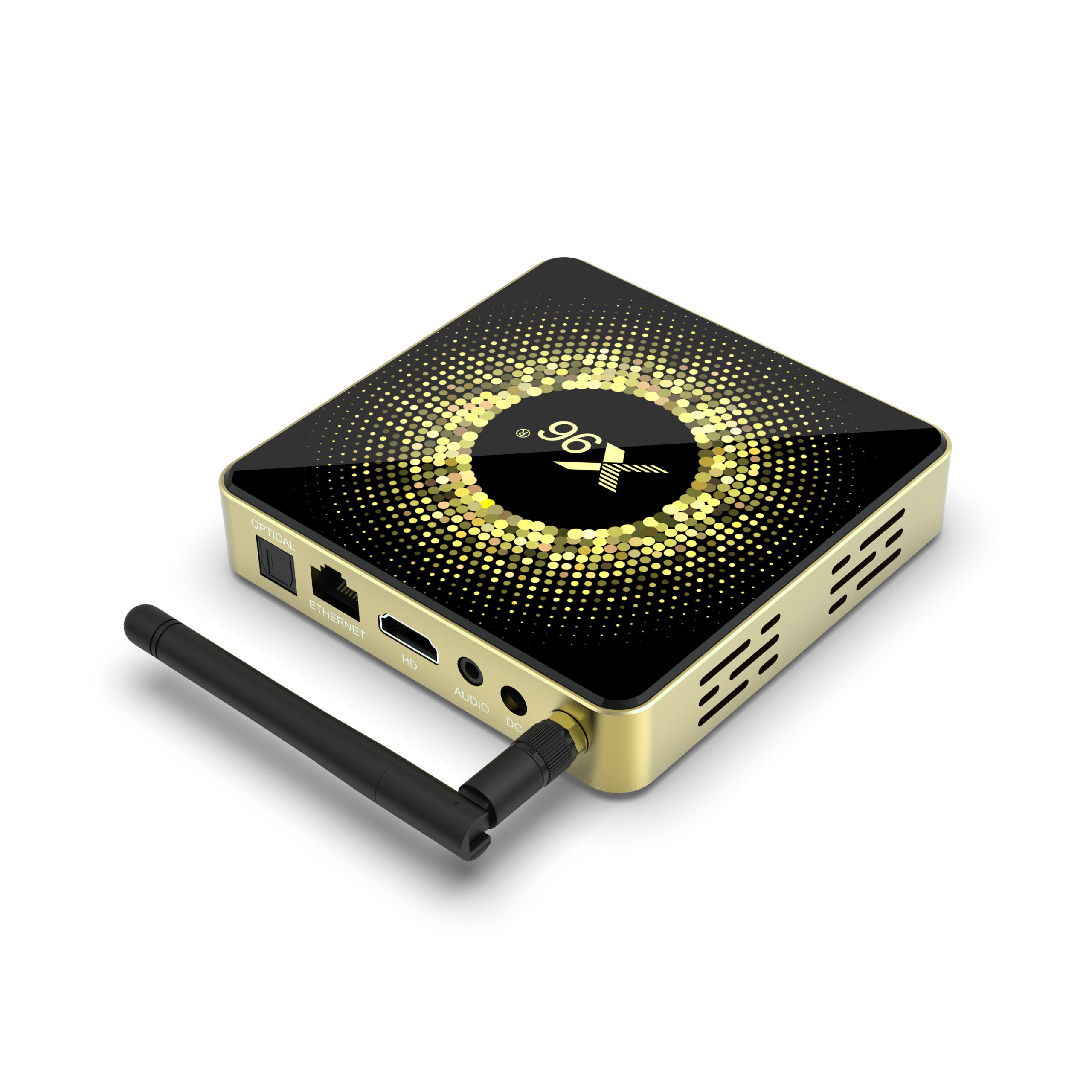

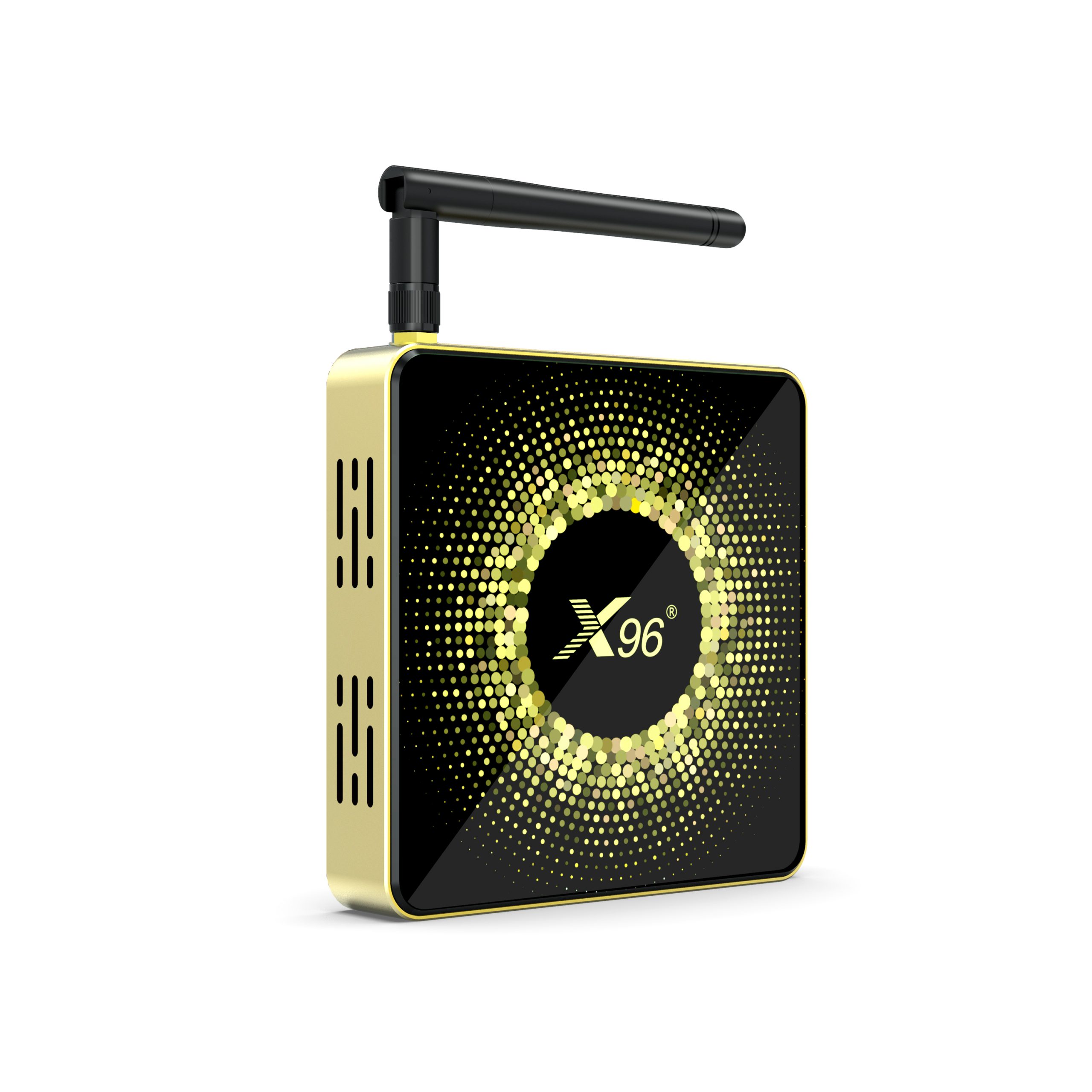

8K Android TV Box Pictures:
