Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee

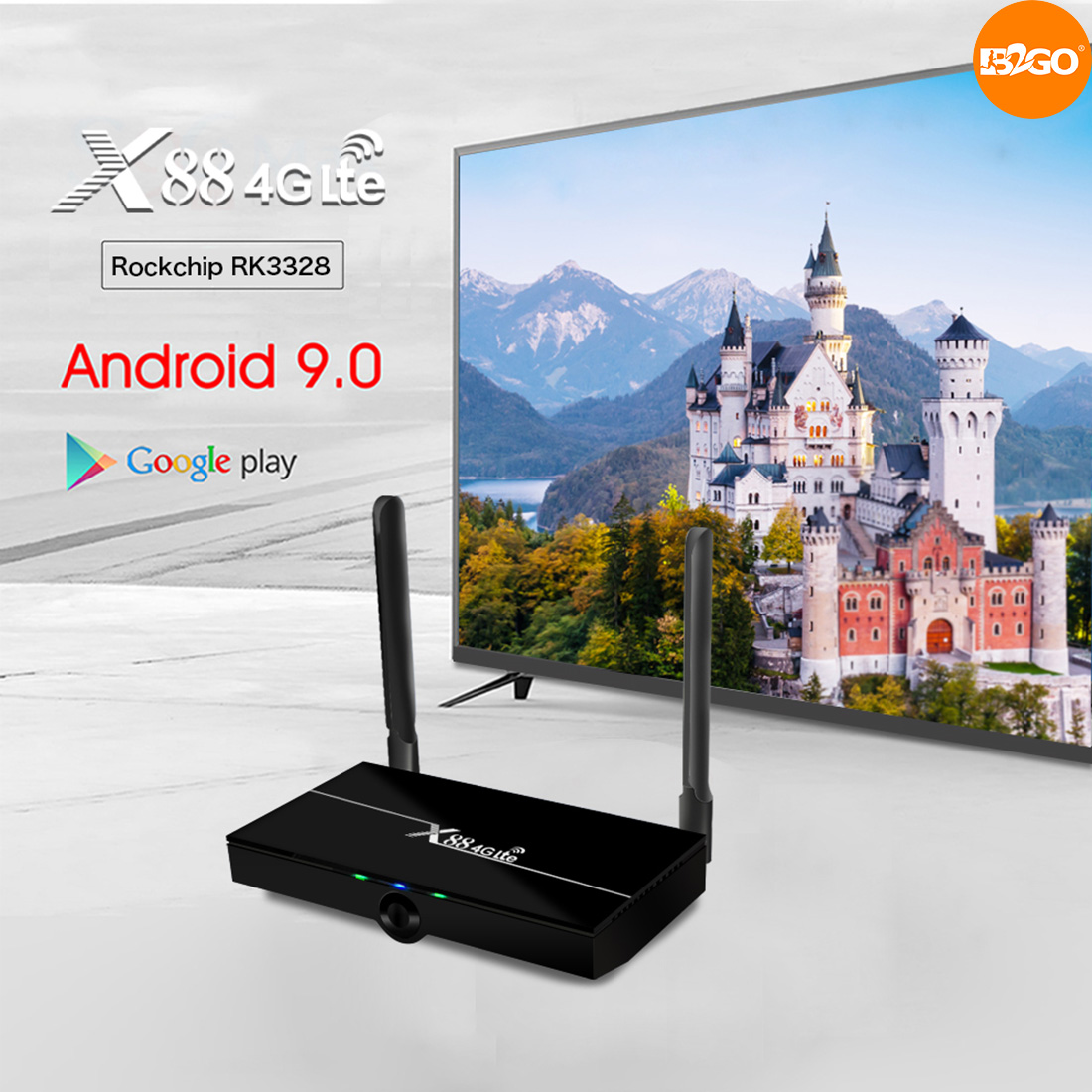

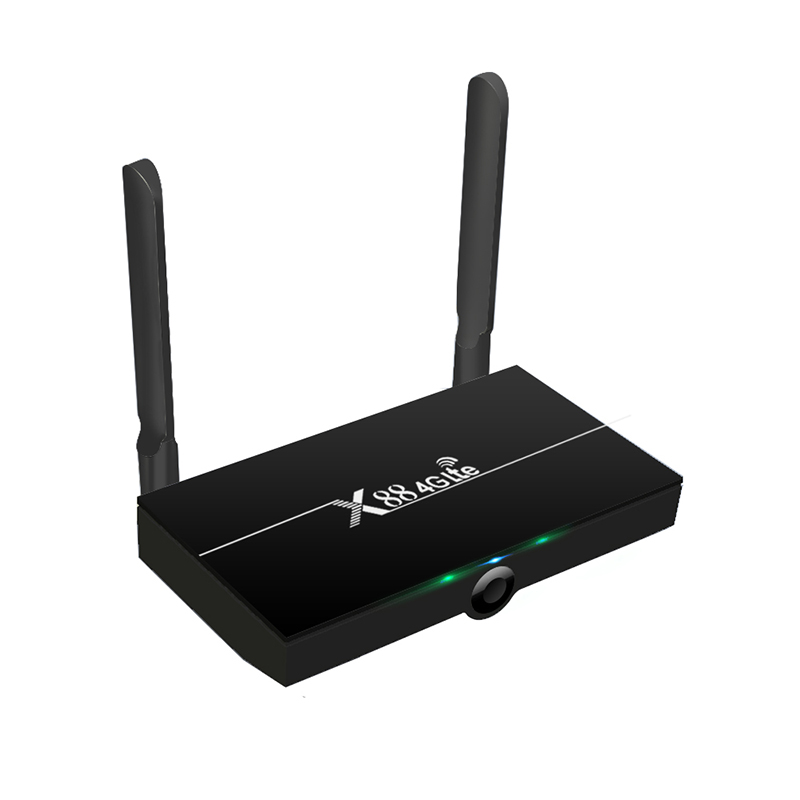

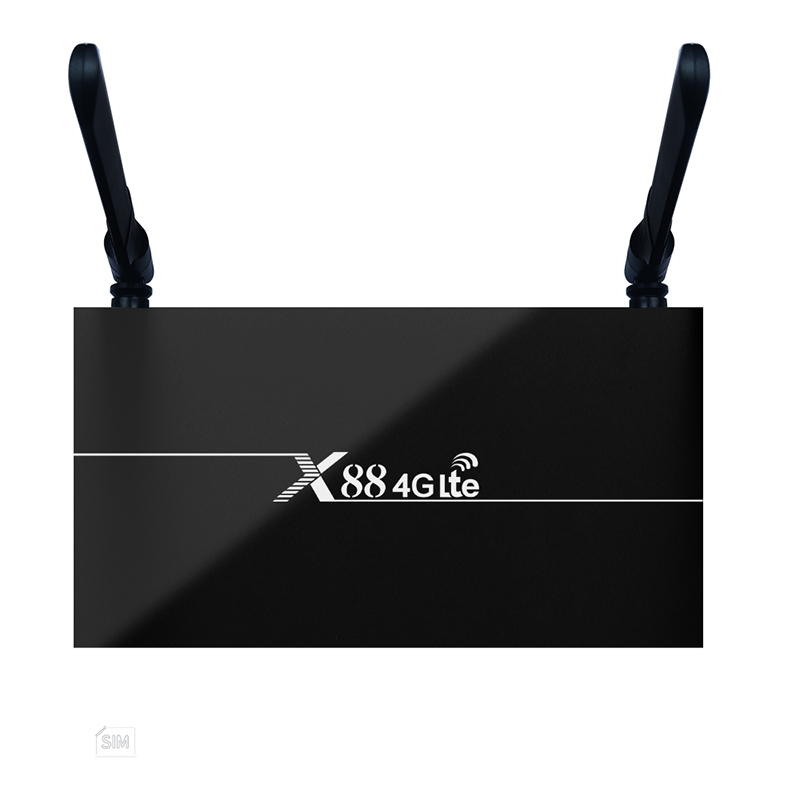

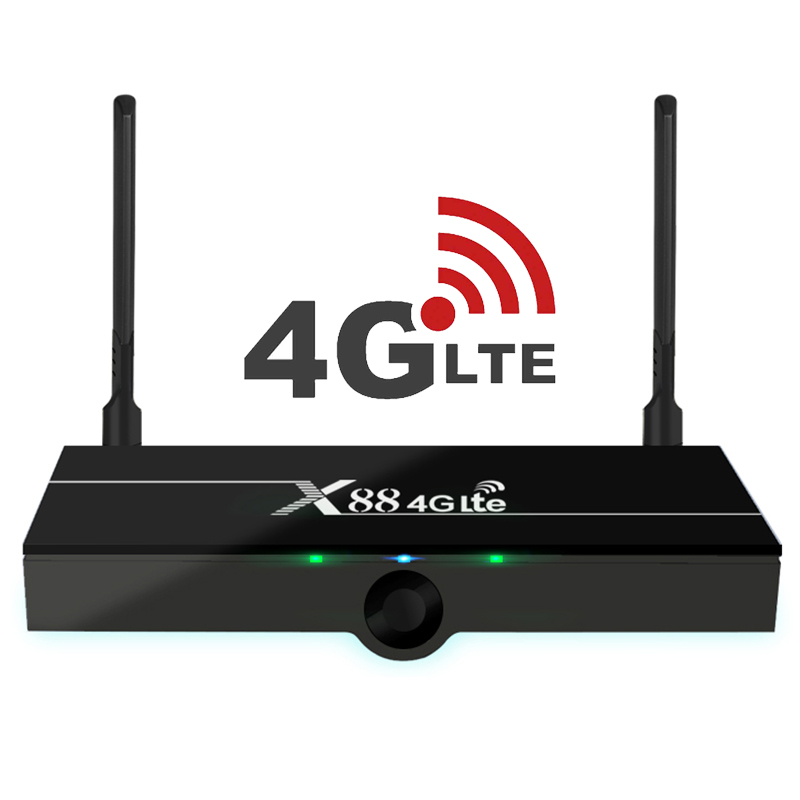

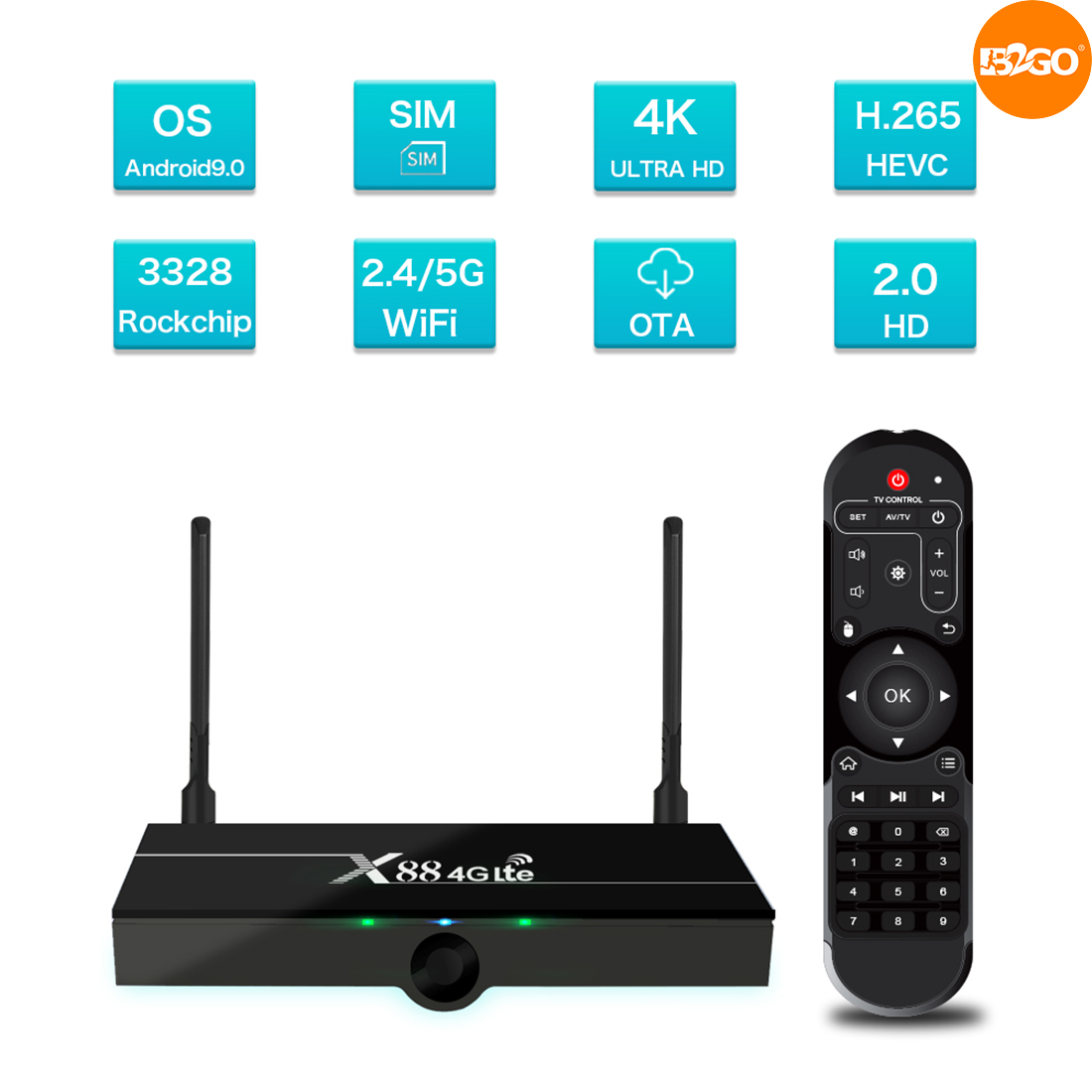

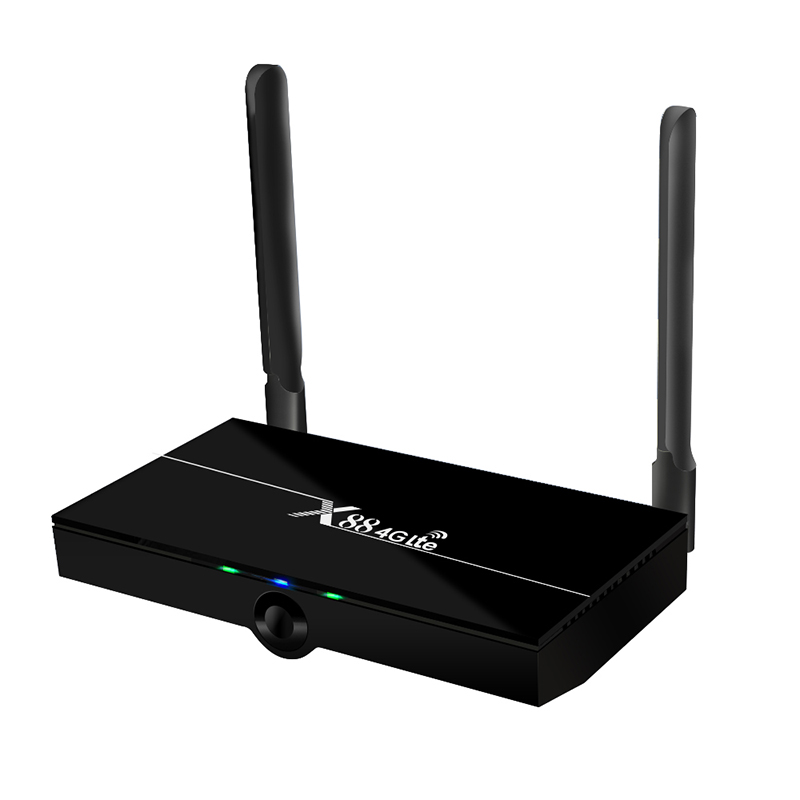

4G LTE Set Top Box Specifications:

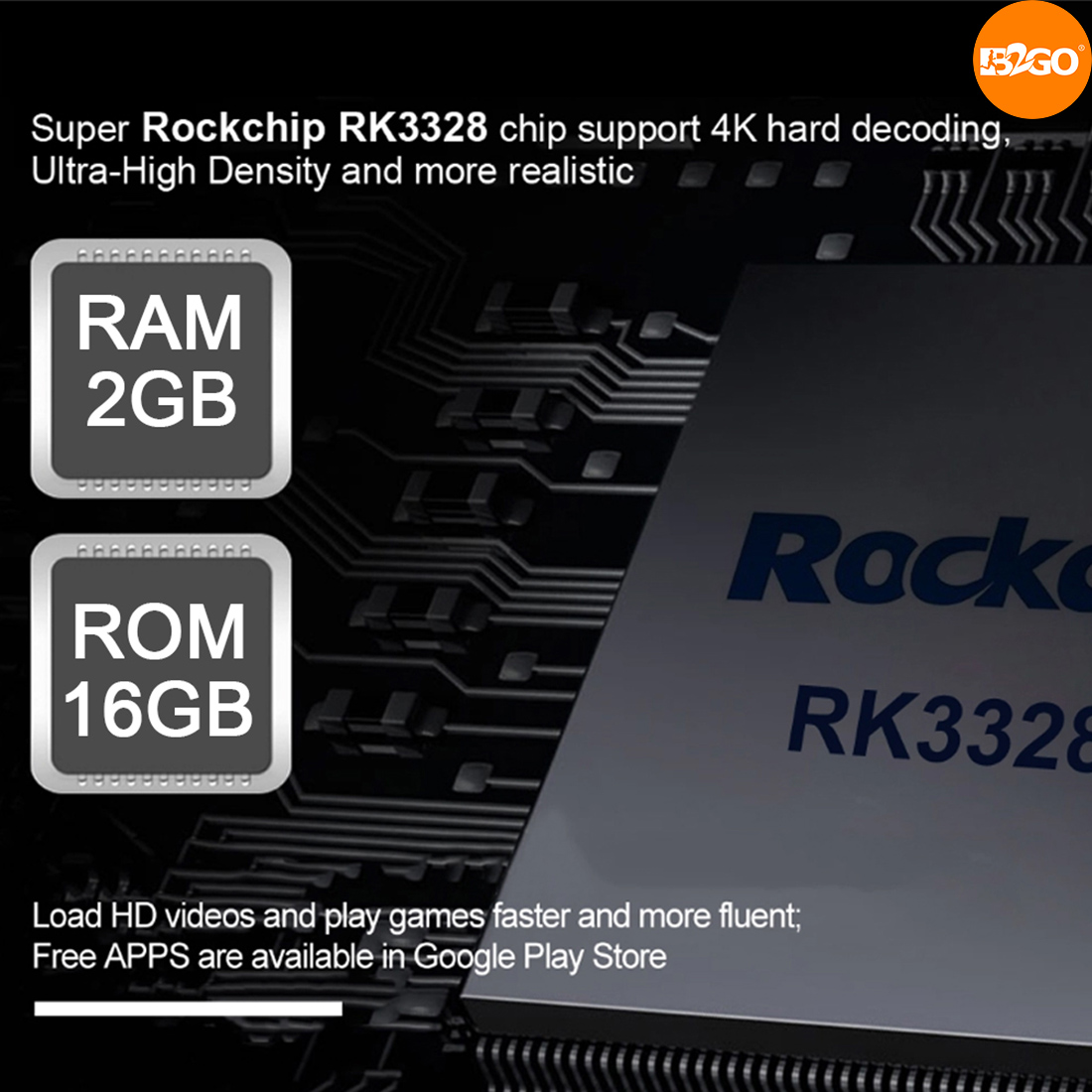

Chipset | RK3328 Quad-Core 64bit A53 |
GPU | Penta-Core Mali-450 |
FLASH | EMMC 16GB |
SDRAM | 2GB |
USB | 1 Type-A USB3.0,1 Type-A USB2.0 |
LAN | Ethernet:10/100M standard RJ-45 |

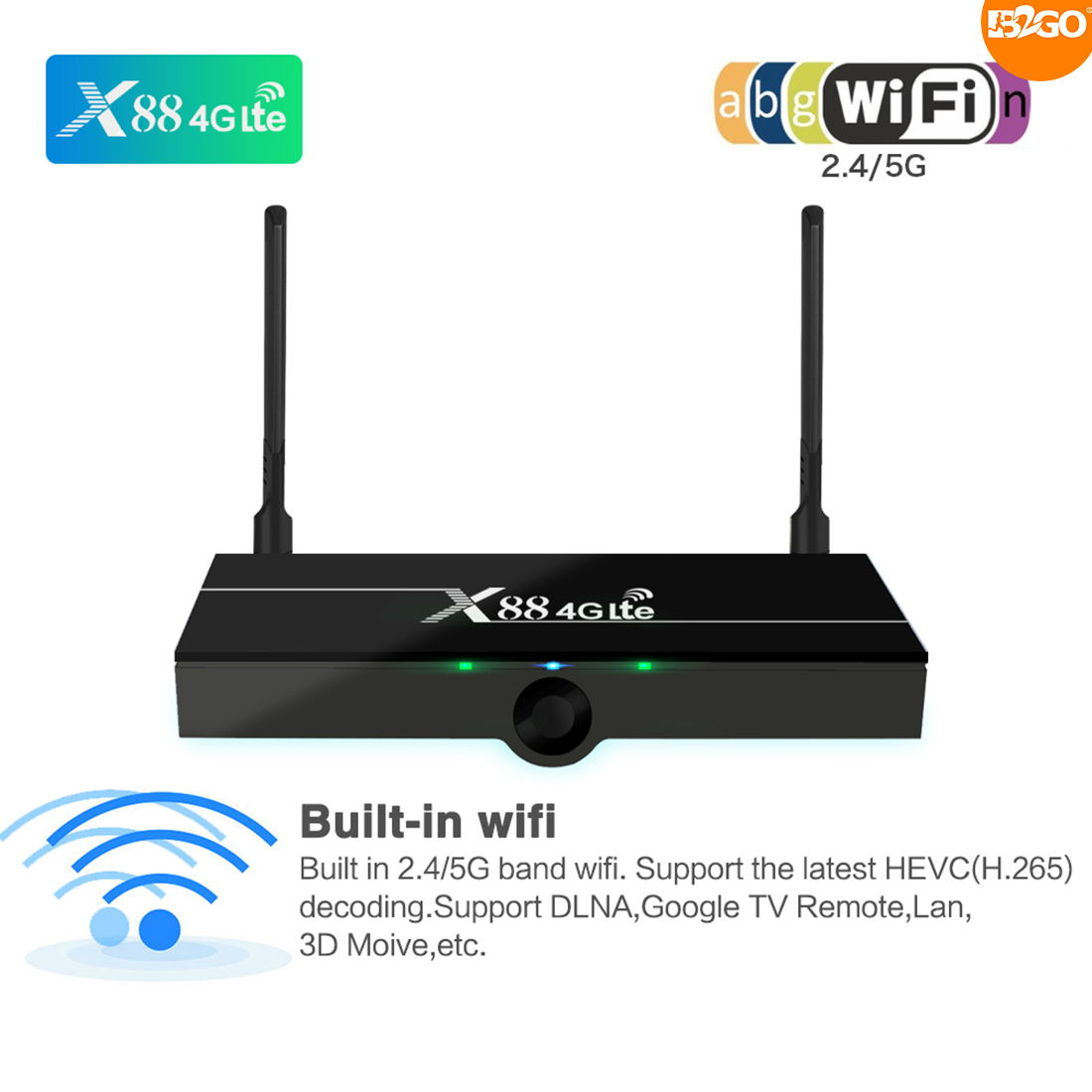

Wireless | 2.4G /5G dual-band Wifi 802.11 a/b/g/n |
4G Moduel | EG25-G(EC20-CE/EC25-E/EC25-A/EC25-AU Option) |
4G Bands | FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 |
TDD: B38/B39/B40/B41 | |
WCDMA: B1/B2/B4/B5/B6/B8/B19 | |
(Can be modified in different countries) | |

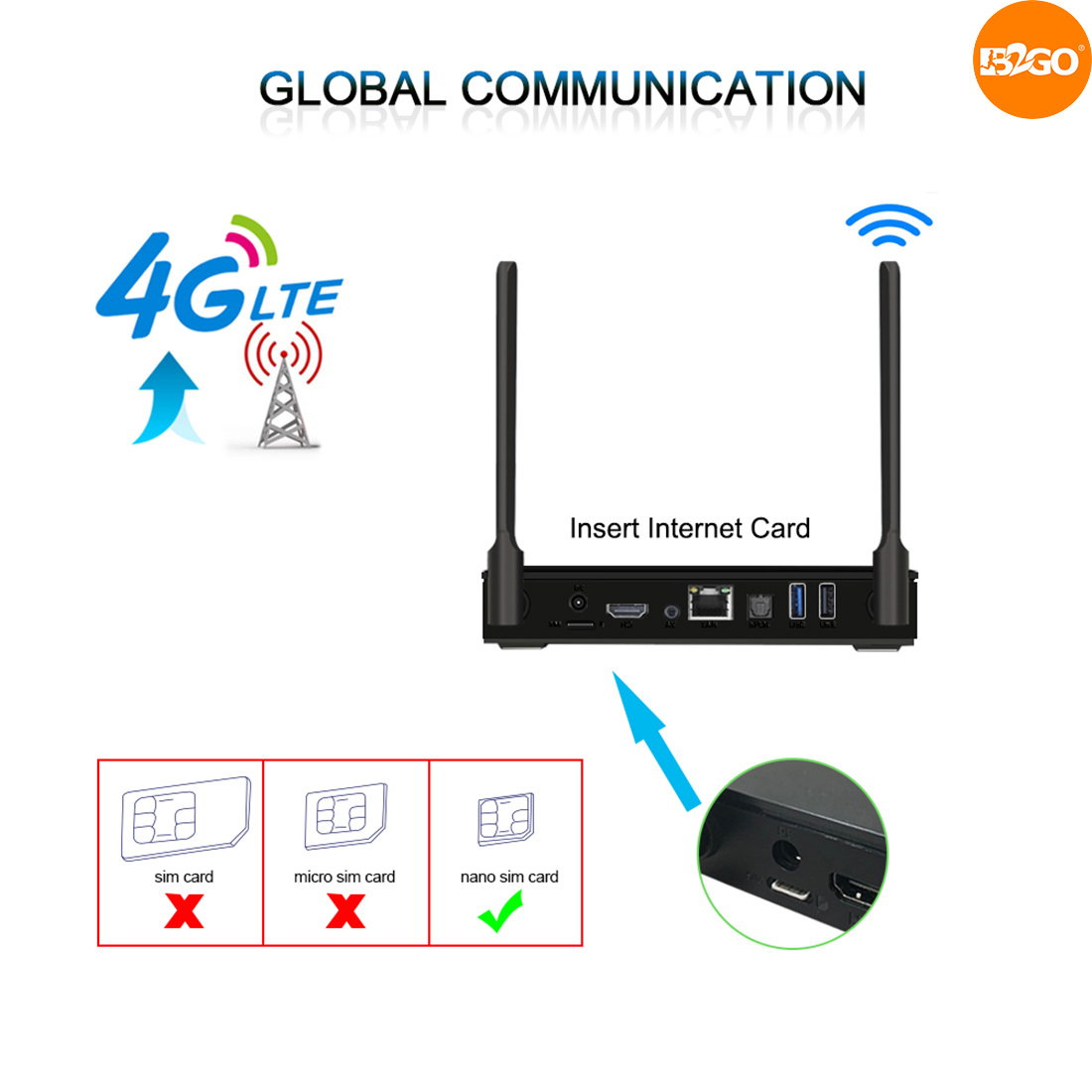

SIM | Nano SIM Card |
SPDIF/IEC958 | Optical |
DisplayPort | HDMI |
HDMI | HDMI 2.0a for 4k@60Hz |
Power Indicator (LED) | Power :Red; WiFi :Blue ; 4G:Green |
Remote | IR |
Power Supply | INPUT:100-240V 50/60HZ OUTPUT:DC 5V/2.5A |
AV | Support |
Operating temperature | 10℃ to 45℃ |
OS | Android 9.0 |
Support Decoder format | 4K VP9 Video decoder, H.265/H.264 video decoder, 1080P other video decoders (VC-1, MPEG-1/2/4, VP6/8) |
Support Media format | Avi/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg |
Support Music format | MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE |
Support Photo format | HD JPEG/BMP/GIF/PNG/TIFF |
HDD file system | FAT16/FAT32/NTFS |
Support Subtitle | SRT/SMI/SUB/SSA/IDX+USB |
High Definition video output | 4K (3840×2160 pixel ) |
OSD type of languages | English/French/German/Spanish/Italian/ etc multilateral languages |
Mouse/ Keyboard | Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle |
Software Specifications | |
Network Function | Tv media18.1 ,Neflix,Vudu,Skype chatting,Picasa,Flicker,Youtube,Facebook,Online movies,etc |
Other feature | Free Internet searching,thousands of android applications,many kinds of games,etc. |
Certification | CE,FCC,ROHS |

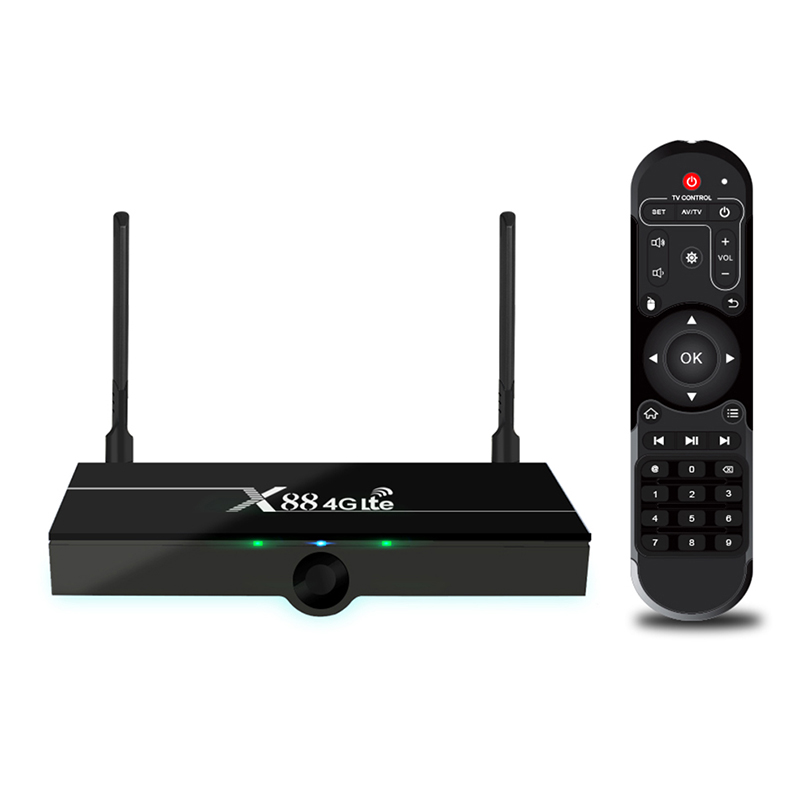

Accessories | Power adaptor,HDMI cable,user manual ,remote |
Option | Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle |
Professional Manufacturer of Android tv box since 2006
